    2RH036D Double-stage Oil-lubricated rotary vane vacuum pump,Rotary piston pump,Rotary vane blower

    Introduction:
    Motor Power: 0.75 Kw

    Pumping speed (50 Hz): 18 m³/h

    Pumping speed (60 Hz): 21.6 m³/h

    Ultimate pressure: 6.0x10-3 mbar

    GET A QUOTE


    2RH036D Double-stage Rotary Vane Vacuum Pump

    Product Description




    Technical data

    Technical data Frequency 2RH018D
    Pumping Speed 50Hz 18m3/h
    60Hz 21.6m3/h
    Ultimate Pressure w/o gas ballet mbar 4.0x10-4
    Ultimate total Pressure w/o gas ballet mbar 3.0x10-3
    Ultimate Pressure w/gas ballet mbar 6.0x10-3
    Water VaporΔP mbar 30
    Inlet/Outlet Flange " KF25
    Voltage 50Hz 220/380v
    60Hz 220/380v
    Nominal motor rating Kw 0.75
    Current 50Hz 13.4/7.70A
    60Hz 16.1/9.24A
    Motor speed 50Hz 1440
    60Hz 1720
    Noise dB(A) 55/58
    Oil (min/max) L 1.0/1.5
    Weight(w/o oil) Kg 31

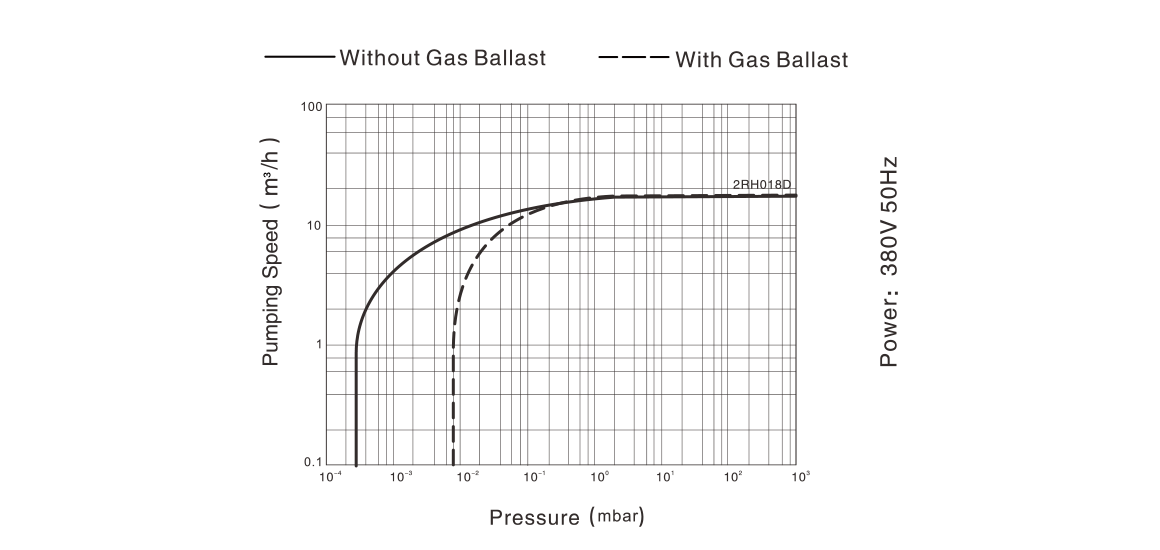

    Characteristic

    Dimensions

    Factory

    As a recognized and wellknown manufacturer of vacuum pumps, Hokaido Vacuum Technology(Int'l) Group has been leading the development of vacuum technology for the industrial applications since the year of establishment. With the continuously developing and daily internationalizing, Hokaido has built 3 highly modernized manufacturing centers with first-class processing equipments installed throughout china, which are Dongguan Yazreid M&E Technology Co Ltd, Haokede Vacuum Technology(Shanghai) Co Ltd, Hokaido Vacuum Technology(Shandong) Co Ltd.
