HP-1400V Oil-free piston vacuum pump

Introduction:
Motor Power: ≤500 W

Pumping speed : ≤7.2 m³/h

Ultimate pressure: -92 Kpa

GET A QUOTE

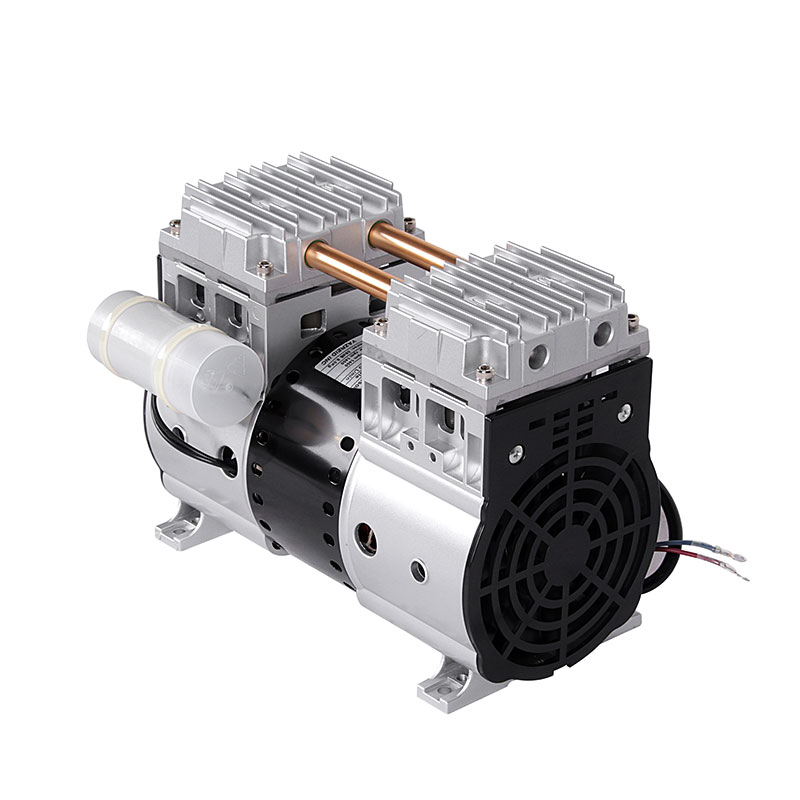

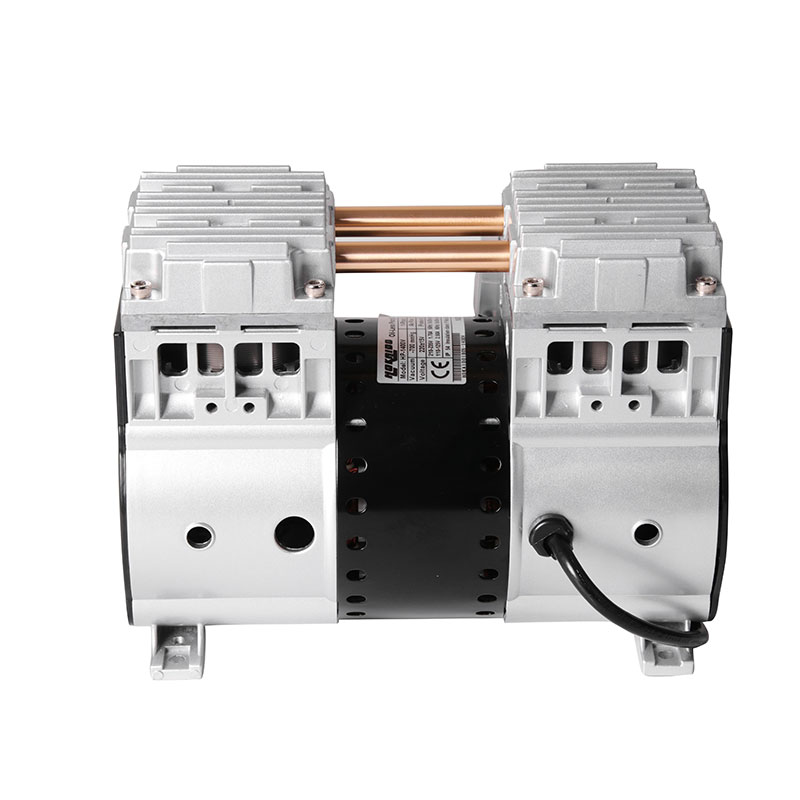

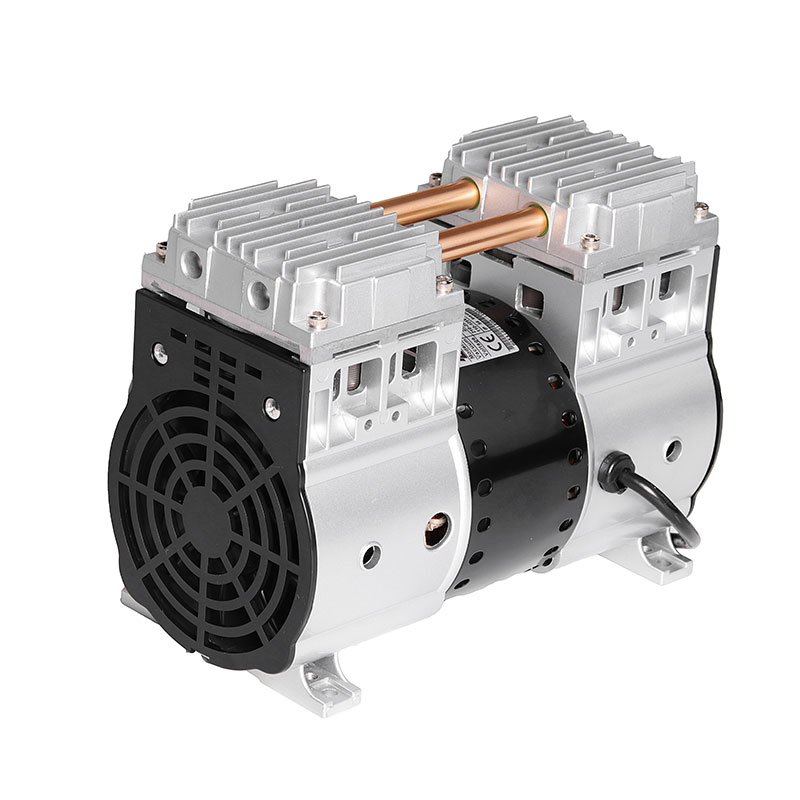

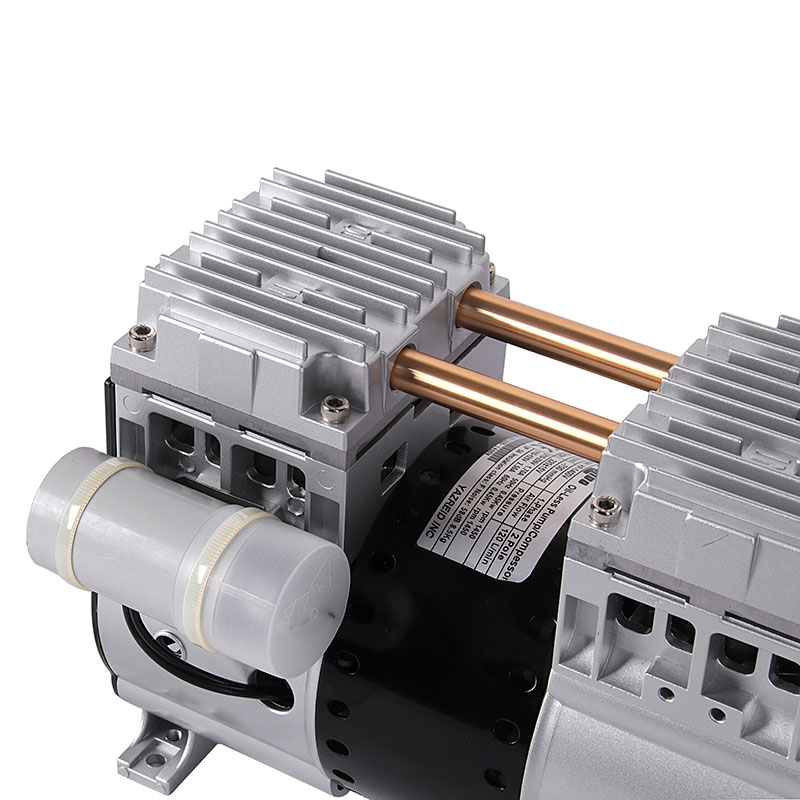

HP-1400V Oil-free piston vacuum pump

Product Description








Technical Data

Technical data Unit HP-1400V
Rated voltage/frequency V/HZ 220v/50HZ/10uF
Input Power W ≤500
Rated airflow m3/h ≤7.2
Max Vacuum Kpa -92
Sound dB(A) ≤58
Ambient temperature 5-40
Insulaion Class " B
Cold Insulation Resistance ≥100
Breakdown Strength min 1500V/50HZ(1min)
Thermal Protection Automatic Reset 130±5℃
Weight Kg 8.0
Installatong dimension mm L203*W112
Overall dimensionn mm L244*W128*H186
Restart Pressure Kpa 0
Inlet/Outlei Size mm 1/4-18FNPT

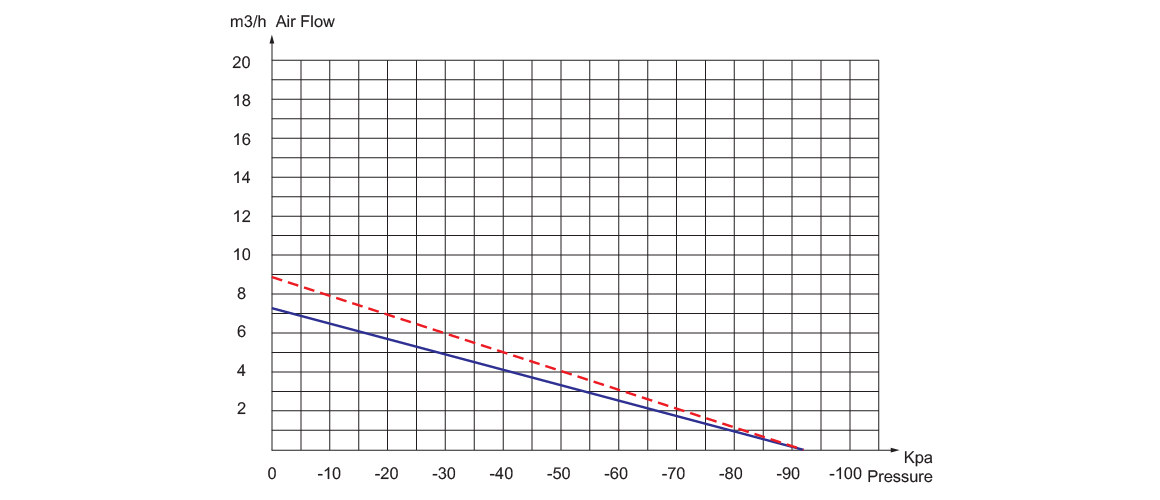

Characteristic

Dimensions

Factory

As a recognized and wellknown manufacturer of vacuum pumps, Hokaido Vacuum Technology(Int'l) Group has been leading the development of vacuum technology for the industrial applications since the year of establishment. With the continuously developing and daily internationalizing, Hokaido has built 3 highly modernized manufacturing centers with first-class processing equipments installed throughout china, which are Dongguan Yazreid M&E Technology Co Ltd, Haokede Vacuum Technology(Shanghai) Co Ltd, Hokaido Vacuum Technology(Shandong) Co Ltd.
