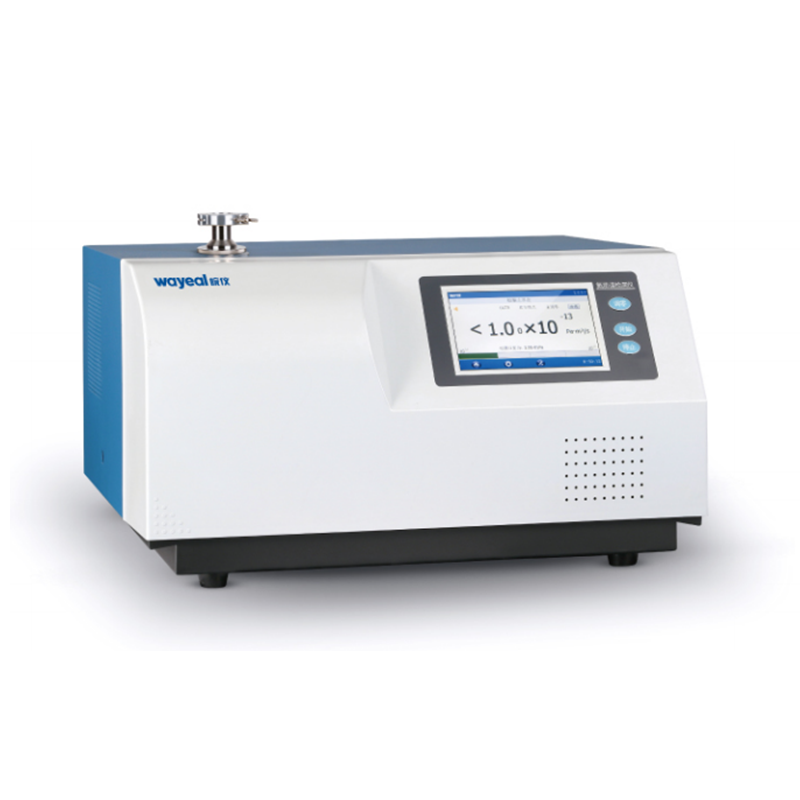

    SFJ-261 Leak detector

    Introduction:
    Motor Power: 600 W

    Rough pumping ability: 1.8 m³/h

    Ultimate pressure: 1500 Pa

    GET A QUOTE


    SFJ-261 Leak detector

    Product Description




    Technical Data

    Technique data Unit SFJ-261Type
    Minimum detectable leak rate (vacuum mode) Pa·m3/s 5×10-13
    Minimum detectable leak rate (sniffer mode) Pa·m3/s 1×10-8
    Leak detection port max pressure Pa 1500/200/40
    Rough pumping ability m3/h 1.8
    Detecting port size " DN25 ISO-KF
    Start time min ≤2
    Connector " RS-232/485 USB*2
    Inlet/outlet connector " Digital and analog I/O, relays
    Dimensions mm 590*484*322
    Weight kg 46
    Voltage V 220±10%,50Hz
    Max power W 600
    Language " Chinese/English
    Temperature 10-40

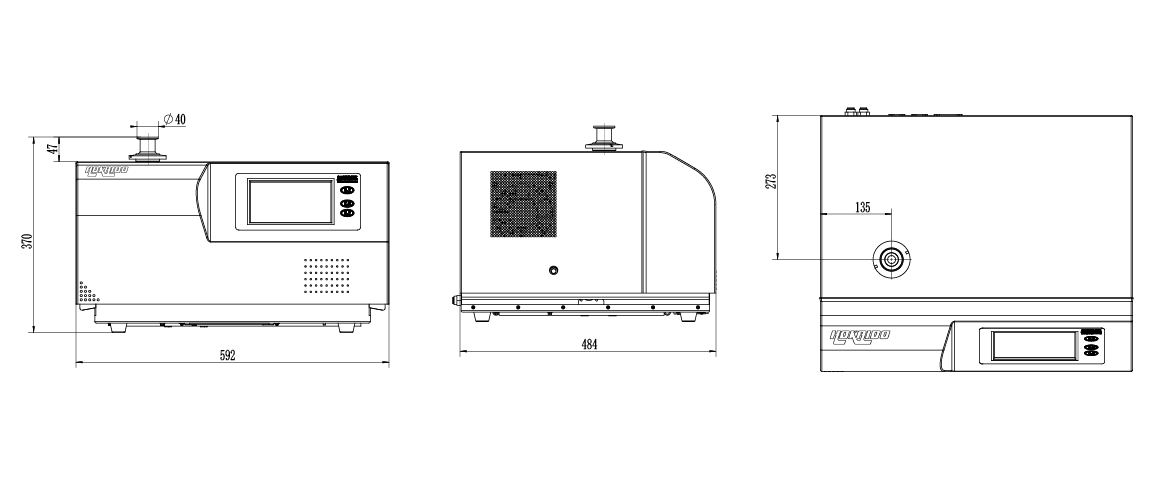

    Dimensions
