  • RSP800 Dry screw vacuum pump
  • RSP800 Dry screw vacuum pump

    Introduction:
    Motor Power: 30 Kw
    Pumping speed: 800 m³/h
    Ultimate pressure: 5 Pa

    GET A QUOTE
    Flow rate(50Hz):: 800 m³/h
    Ultimate pressure: : 5 Pa

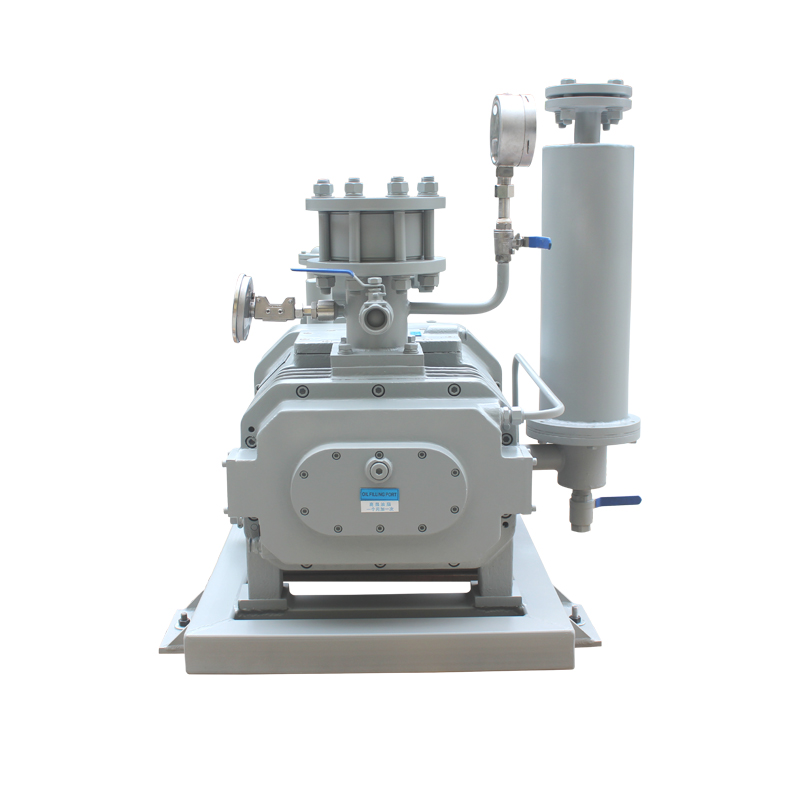

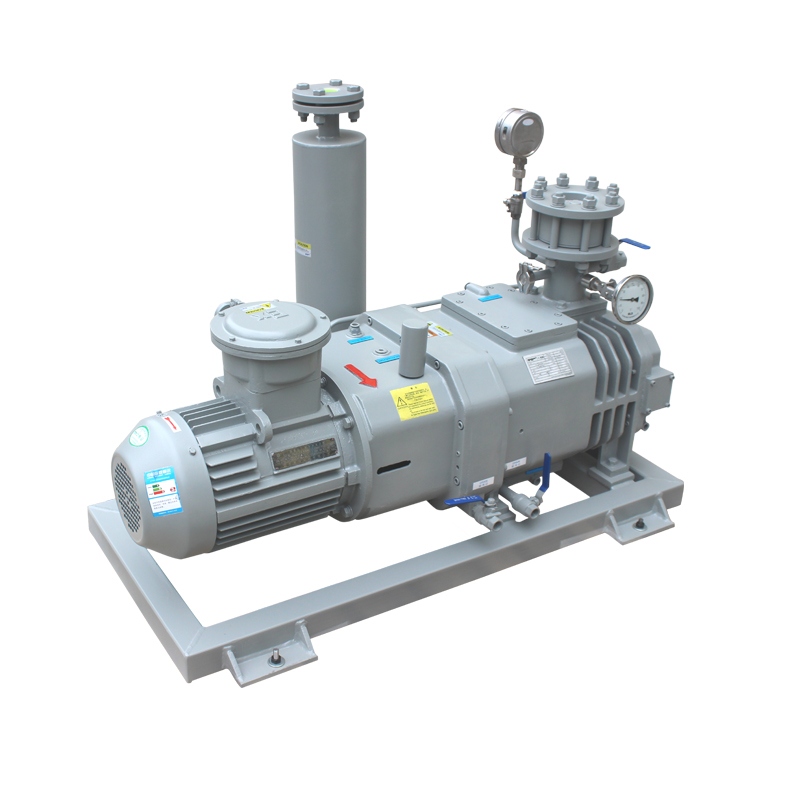

    RSP800 Dry screw vacuum pump

    Technical data Unit RSP800
    Pumping Speed m3/h 800
    L/S 222
    Ultimate Vacuum Torr 0.04
    Pa 5
    Motor Power Kw 30
    Motor speed rpm 2900
    Inlet Flange mm DN100
    Outlet Flange mm DN80
    Cooling Water Pressure barg 2-4
    Cooling Water Flow L/min 8
    Cooling Water Temp 5-35
    Noise dB(A) ≤85
    Weight Kg 1050

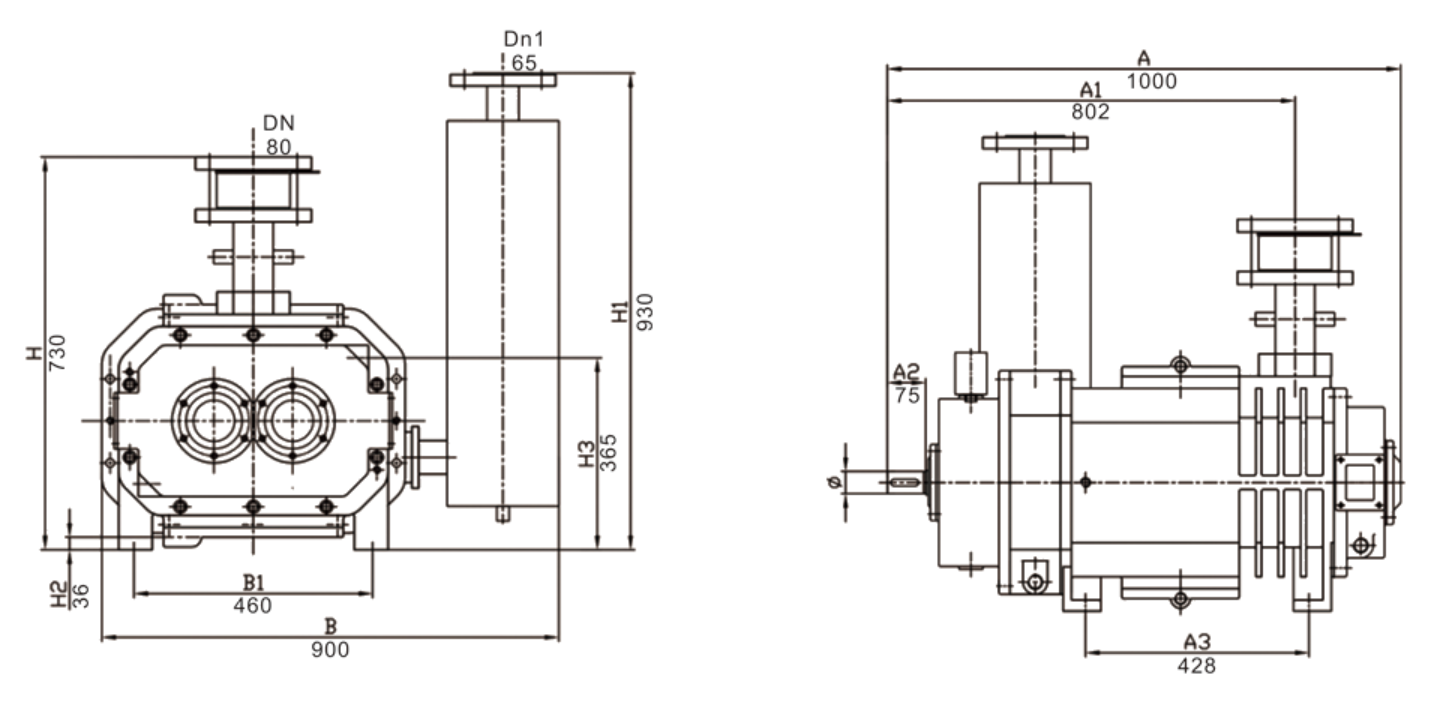

    Dimension drawing:

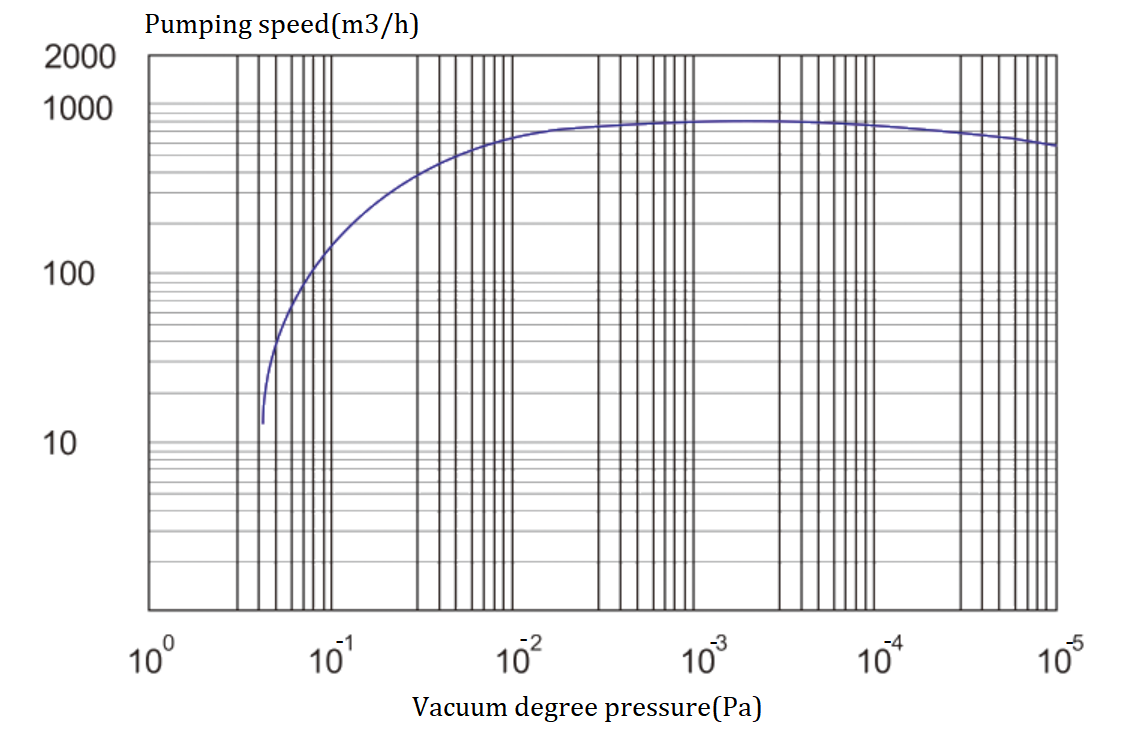

    Performance curve:

    Factory

    As a recognized and wellknown manufacturer of vacuum pumps, Hokaido Vacuum Technology(Int'l) Group has been leading the development of vacuum technology for the industrial applications since the year of establishment. With the continuously developing and daily internationalizing, Hokaido has built 3 highly modernized manufacturing centers with first-class processing equipments installed throughout china, which are Dongguan Yazreid M&E Technology Co Ltd, Haokede Vacuum Technology(Shanghai) Co Ltd, Hokaido Vacuum Technology(Shandong) Co Ltd.
