  • RSD1102 Dry screw vacuum pump
  • RSD1102 Dry screw vacuum pump

    Introduction:
    Motor Power: 3.7+4.0 Kw

    Pumping speed: 1080 m³/h

    Ultimate pressure: ≤0.1 Pa

    GET A QUOTE

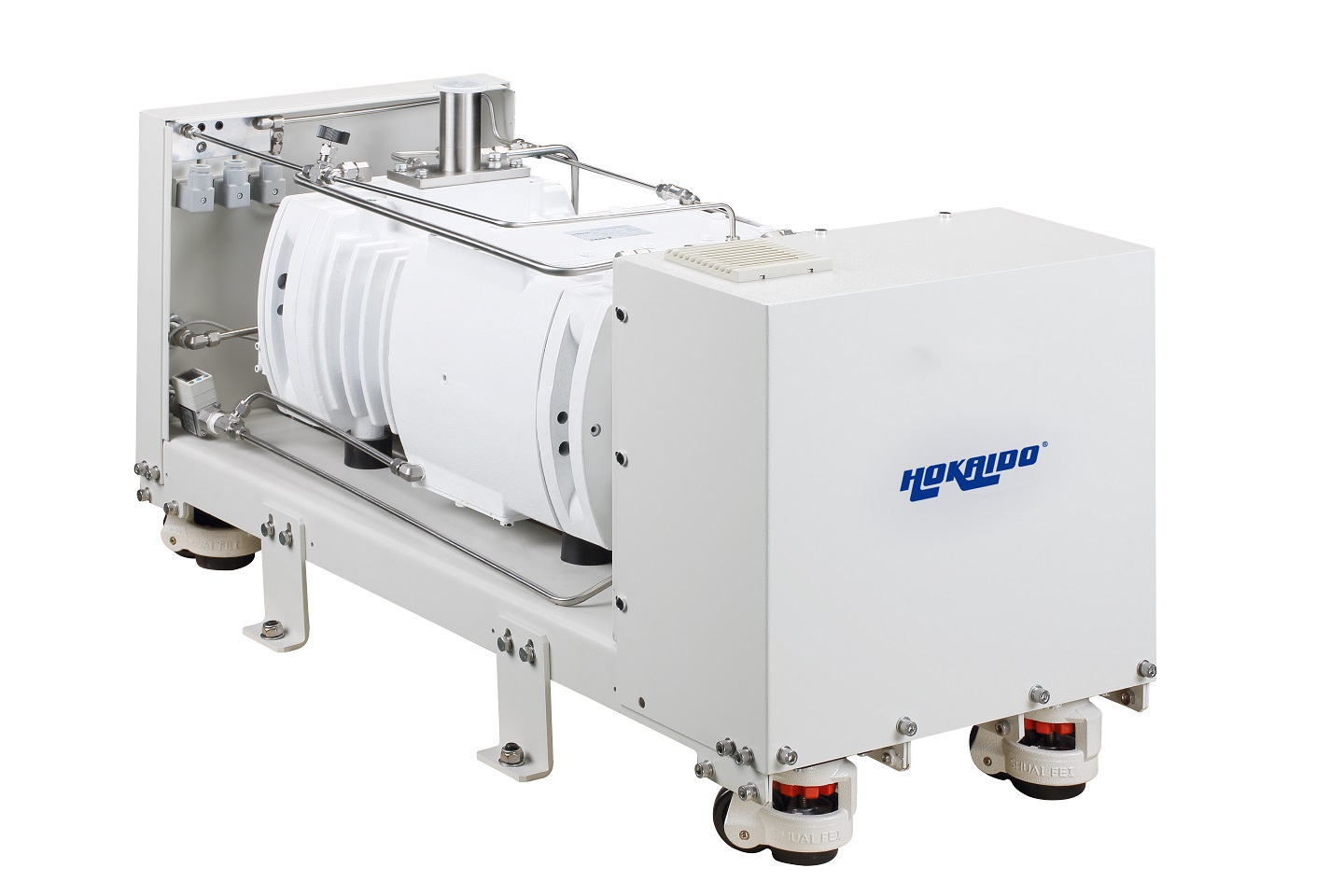

    RSD1102 Dry screw vacuum pump

    Technique data Unit RSD1102
    Pumping speed m3/h 1080
    Ultimate full pressure (without purging) Pa ≤0.1
    Motor rated power kw 3.7+4.0
    Voltage(three-phase) V 380/400
    Air inlet connector   VG100
    Air outlet connector   KF40
    Cooling water Pressure MPa 0.2-0.6
    Flow rate L/min ≥4
    Temperature 5-30
    N2 purging Pressure MPa 0.2-0.6
    Flow rate L/min 12-50
    Maximum allowable outlet pressure MPa 0.14
    Noise (with muffler and check valve) dB(A) ≤65
    Ambient temperature 5-40
    Weight Kg ~378

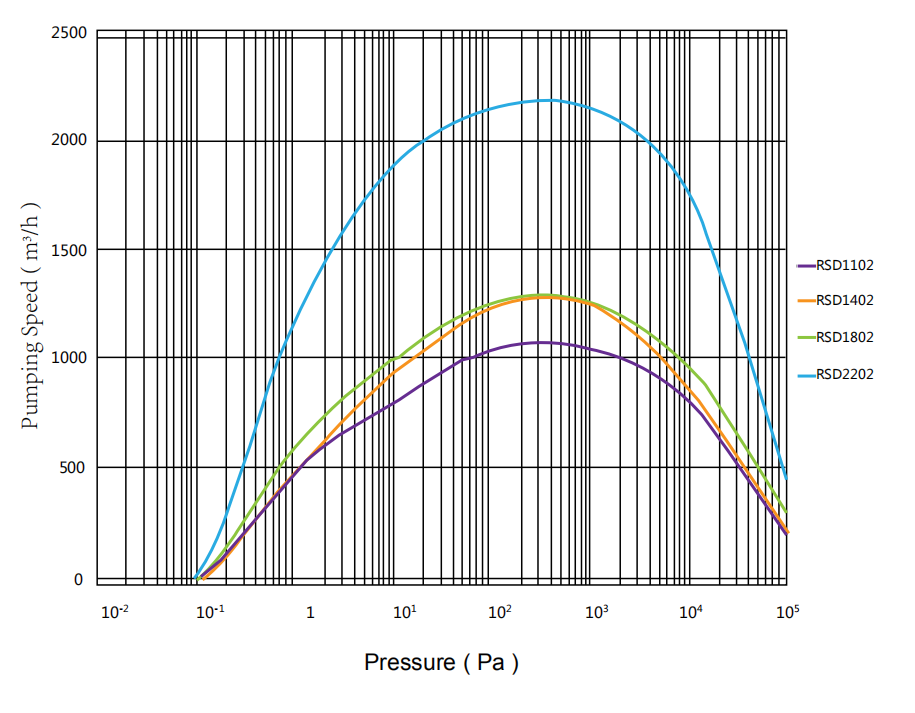

    Performance curve:

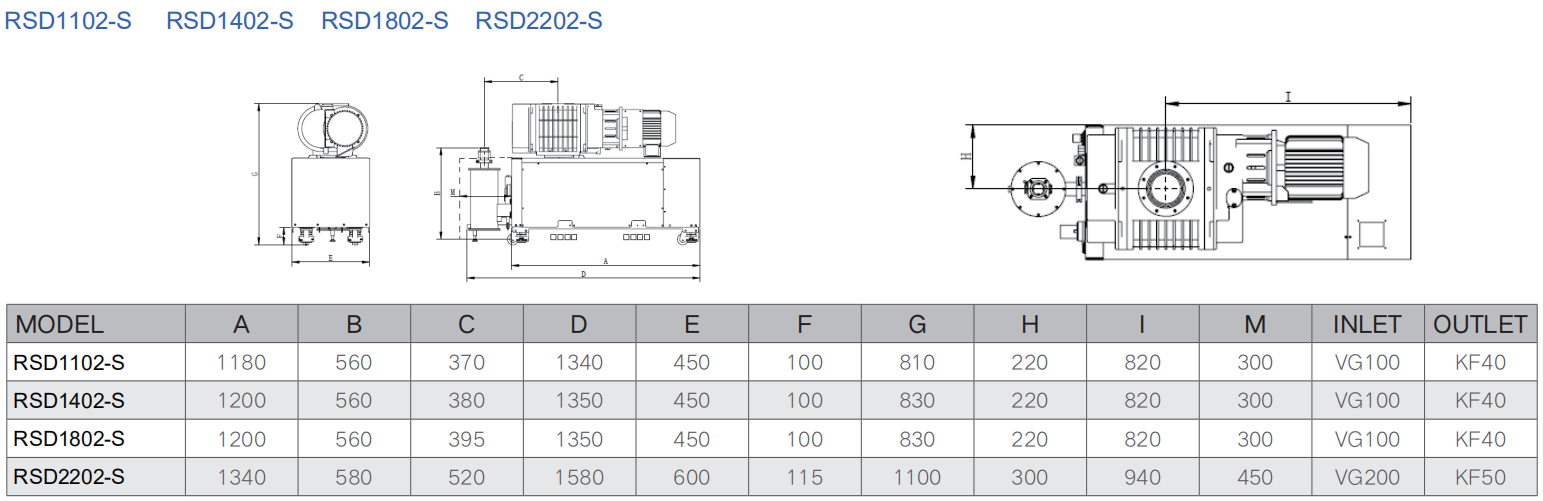

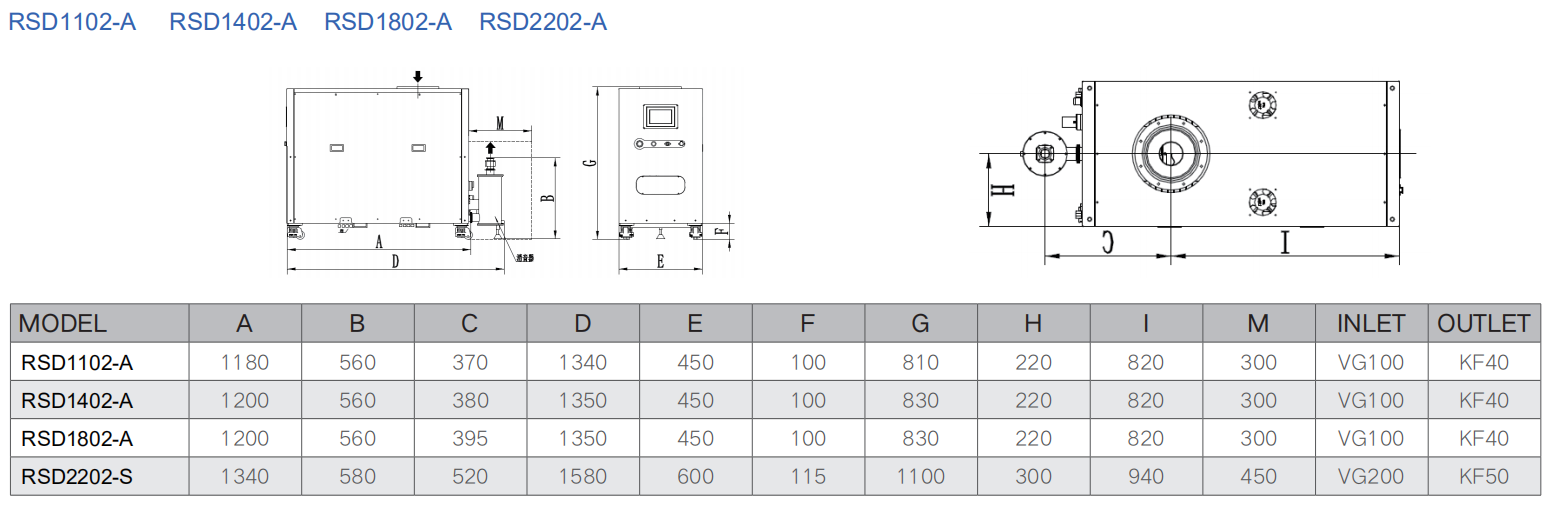

    Dimension drawing:
