  • 2RH175C Double-stage Oil-lubricated rotary vane vacuum pump,rotary piston pump,rotary vane blower
  • 2RH175C Double-stage Oil-lubricated rotary vane vacuum pump,rotary piston pump,rotary vane blower

    Introduction:
    Motor Power: 5.5 Kw
    Pumping speed (50 Hz): 175 m³/h
    Pumping speed (60 Hz): 180 m³/h
    Ultimate pressure: 0.5Pa

    GET A QUOTE

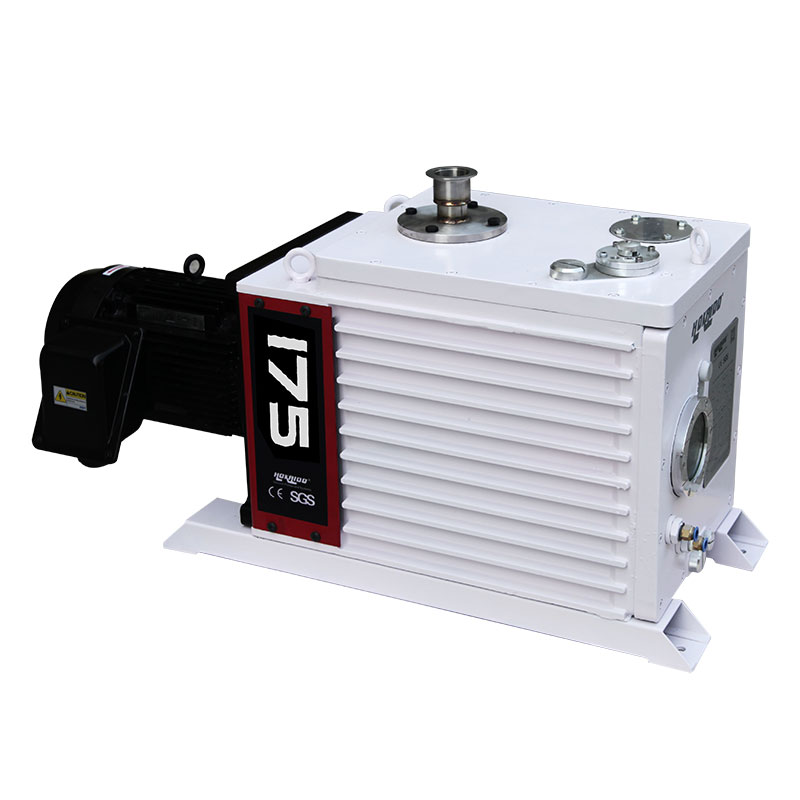

    2RH175C Double-stage Rotary Vane Vacuum Pump

    Technique data sheet:
    Technical data Frequency 2RH175C
    Pumping Speed 50Hz 175m3/h
    60Hz 180m3/h
    Ultimate Pressure w/o gas ballet mbar 1.0x10-3
    Ultimate total Pressure w/o gas ballet mbar 5.0x10-3
    Ultimate Pressure w/gas ballet mbar 1.0x10-2
    Water VaporΔP mbar 20
    Inlet/Outlet Flange " KF50
    Voltage 50Hz 220-240/380-415v
    60Hz 220-280/380-440v
    Nominal motor rating Kw 5.5
    Current 50Hz 22.9/13.3A
    60Hz 24.2/14.2A
    Motor speed 50Hz 1400/1410
    60Hz 1680/1710
    Noise dB(A) 75
    Oil (min/max) L 16/25
    Weight(w/o oil) Kg 200

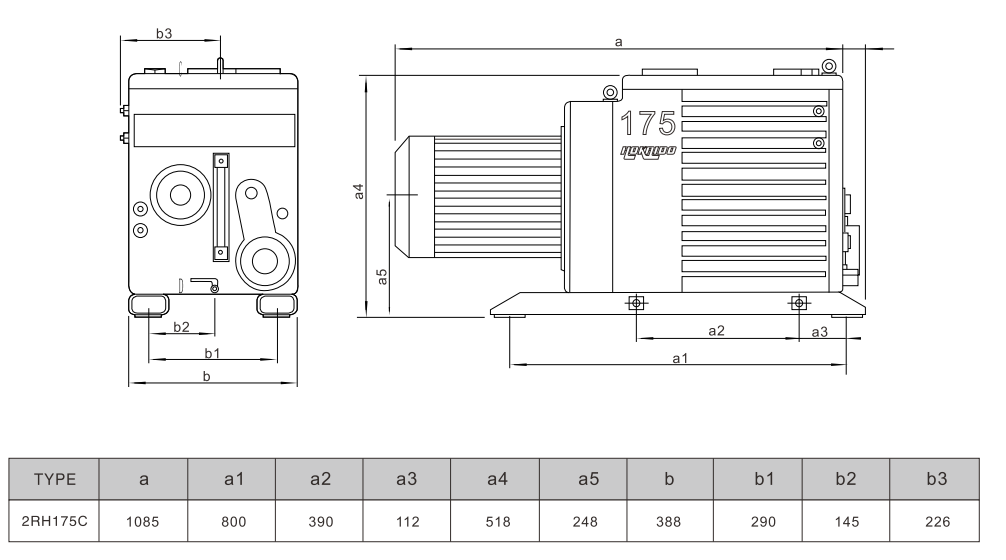

    Dimension drawing:

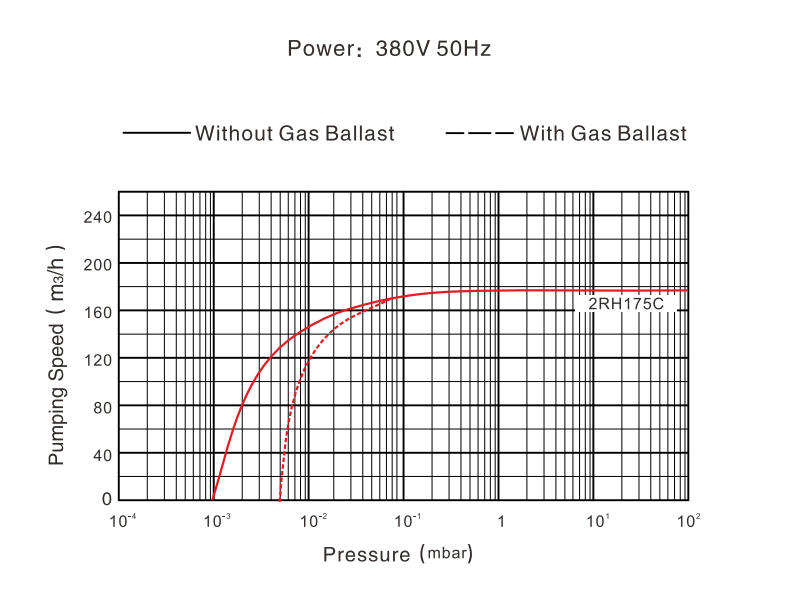

    Performance curve:
