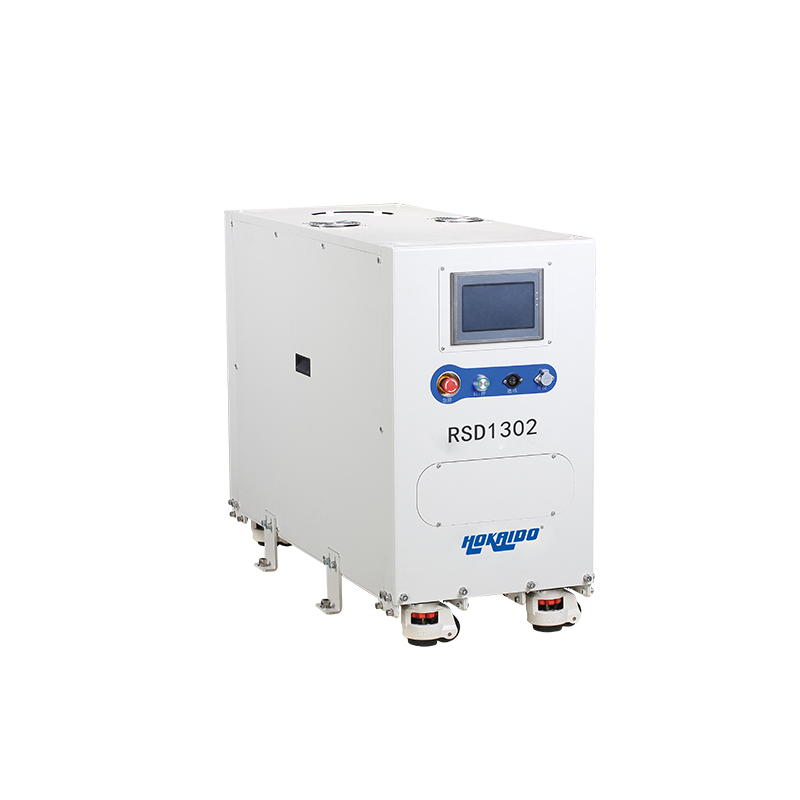

    RSD1302 Dry screw vacuum pump

    Introduction:
    Motor Power: 3.7+5.5 Kw

    Pumping speed: 1300 m³/h

    Ultimate pressure: ≤0.1 Pa

    GET A QUOTE


    RSD1302 Dry screw vacuum pump

    Product Description






    Technical Data

    Technique data Unit RSD1302
    Pumping speed m3/h 1300
    Ultimate full pressure (without purging) Pa ≤0.1
    Motor rated power kw 3.7+5.5
    Voltage(three-phase) V 380/400
    Air inlet connector   VG100
    Air outlet connector   KF40
    Cooling water Pressure MPa 0.2-0.6
    Flow rate L/min ≥4.5
    Temperature 5-30
    N2 purging Pressure MPa 0.2-0.6
    Flow rate L/min 12-50
    Maximum allowable outlet pressure MPa 0.14
    Noise (with muffler and check valve) dB(A) ≤68
    Ambient temperature 5-40
    Weight Kg ~428

    Characteristic

    Dimensions

    Factory

    As a recognized and wellknown manufacturer of vacuum pumps, Hokaido Vacuum Technology(Int'l) Group has been leading the development of vacuum technology for the industrial applications since the year of establishment. With the continuously developing and daily internationalizing, Hokaido has built 3 highly modernized manufacturing centers with first-class processing equipments installed throughout china, which are Dongguan Yazreid M&E Technology Co Ltd, Haokede Vacuum Technology(Shanghai) Co Ltd, Hokaido Vacuum Technology(Shandong) Co Ltd.
