  • RH0160 Single-stage Rotary Vane Vacuum Pump
  • RH0160 Single-stage Rotary Vane Vacuum Pump

    Introduction:
    Motor Power: 4.5 Kw

    Pumping speed (50 Hz): 160 m³/h

    Pumping speed (60 Hz): 190m³/h

    Ultimate pressure: 0.1 mbar

    GET A QUOTE

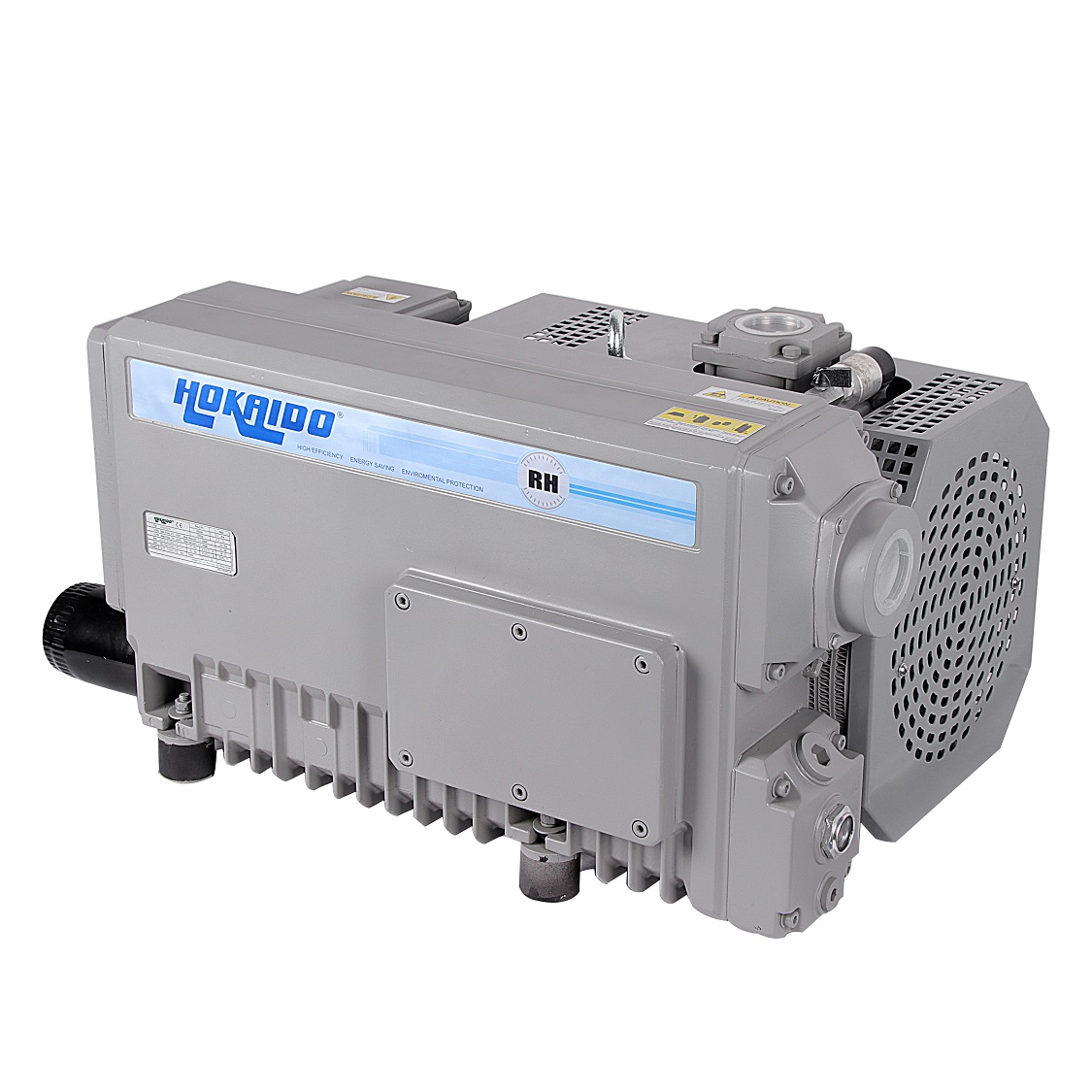

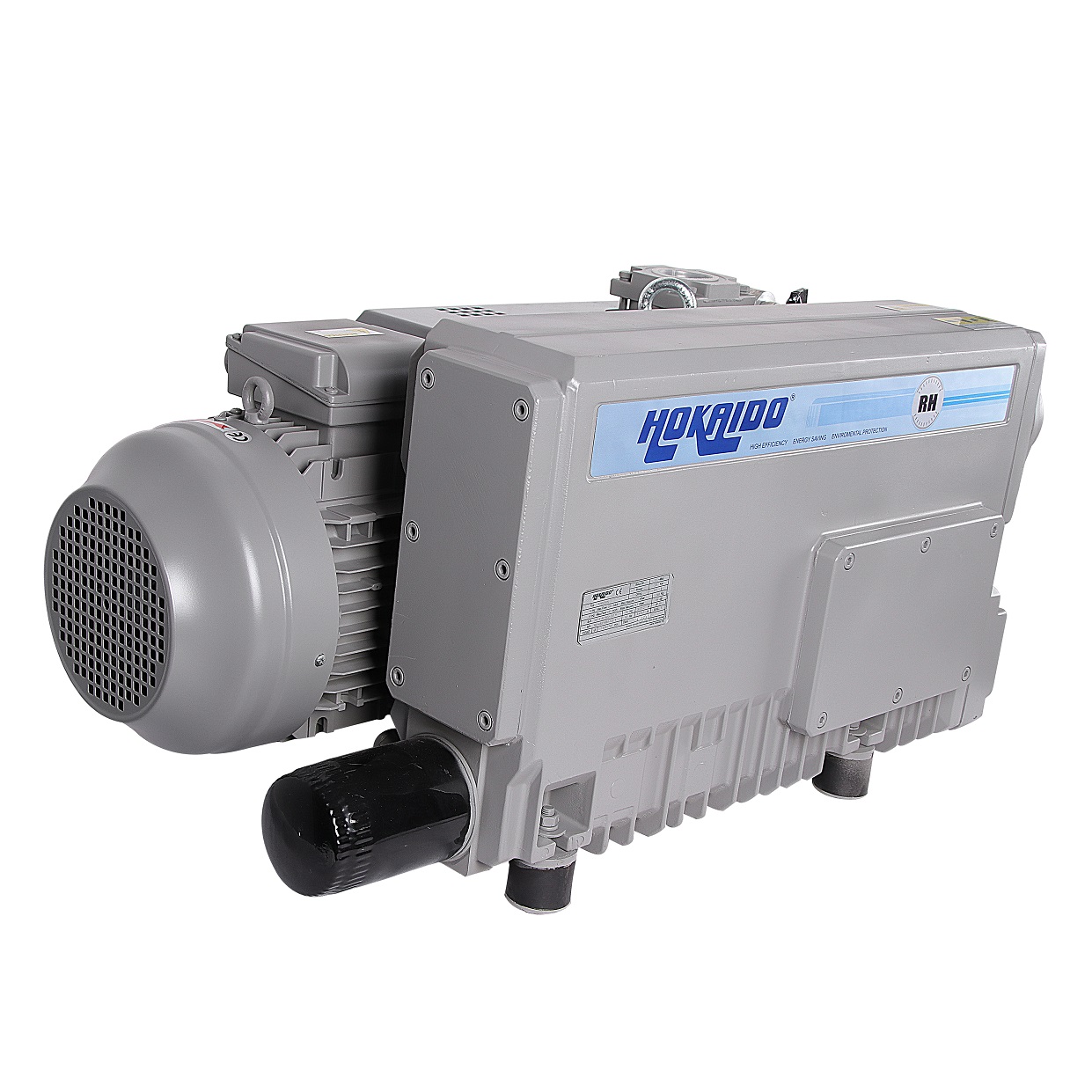

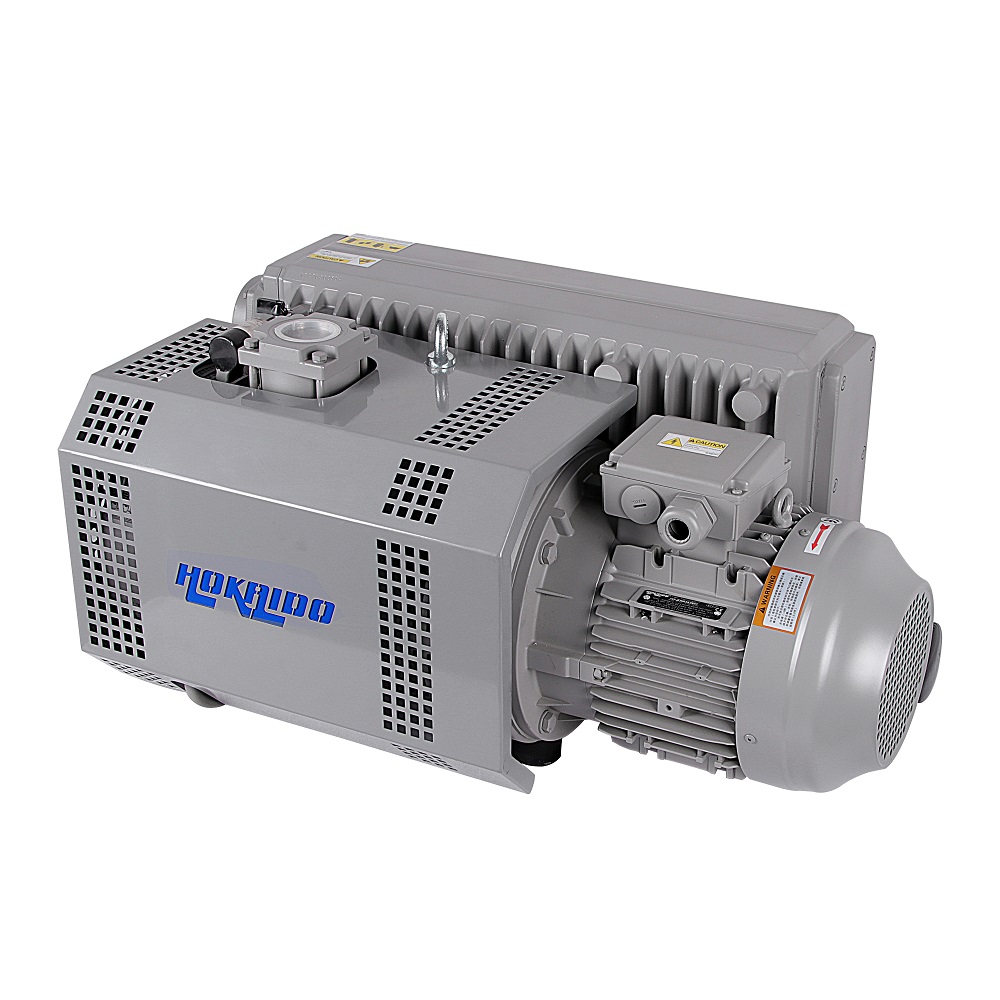

    RH0160 Single-stage Rotary Vane Vacuum Pump

    Technical data Frequency RH0160
    Pumping Speed 50Hz 160m3/h
    60Hz 190m3/h
    Ultimate pressure mbar 0.1
    Diameter " G2"/G2"
    Voltage 50Hz 345-415/600-720v
    60Hz 380-480/660-720v
    Nominal motor rating Kw 4
    Current 50Hz 9.0/5.2A
    60Hz 9.4/5.2A
    Nominal speed rpm 1455/1720
    Sound dB(A) 67
    Oil (max) L 6
    Weight(w/o oil) Kg 149

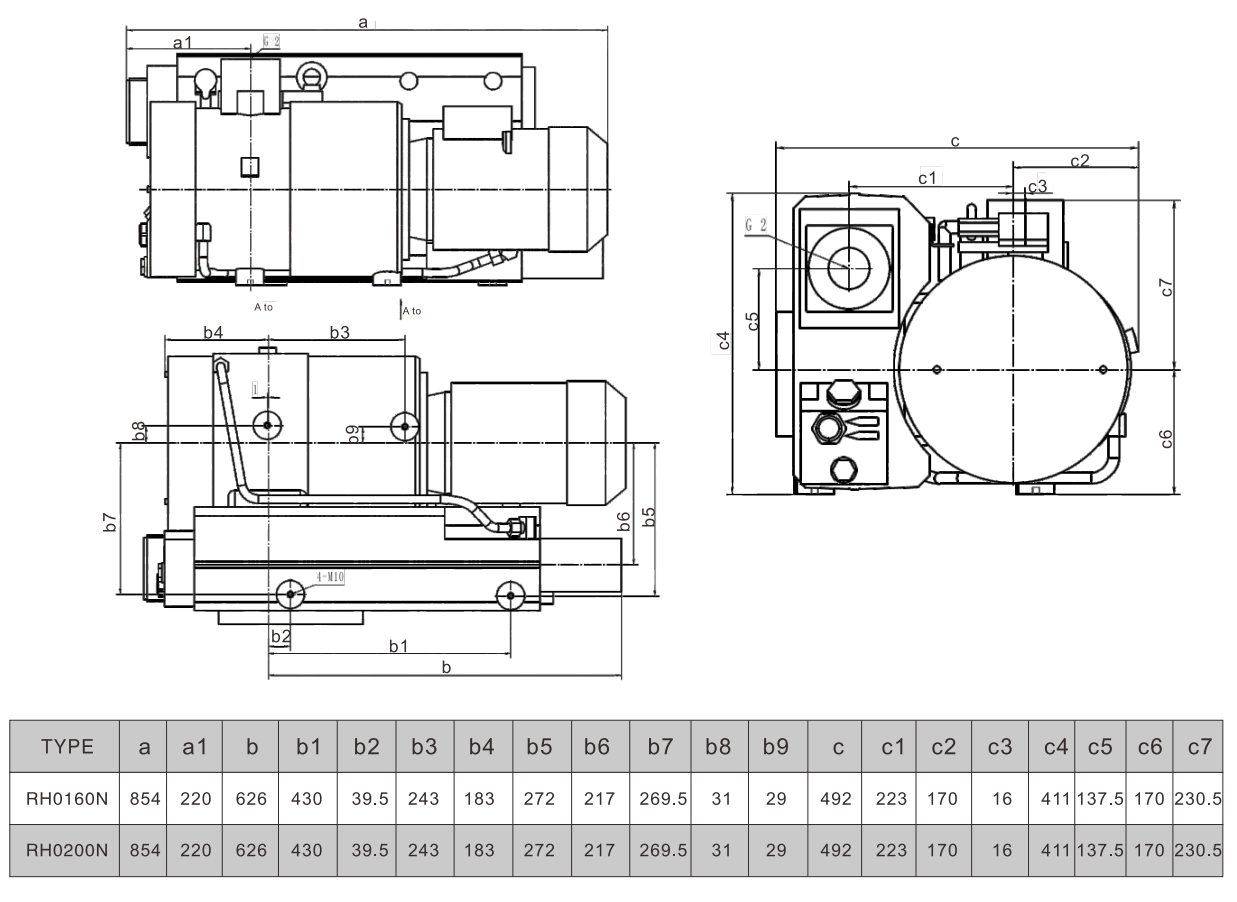

    Dimension drawing:

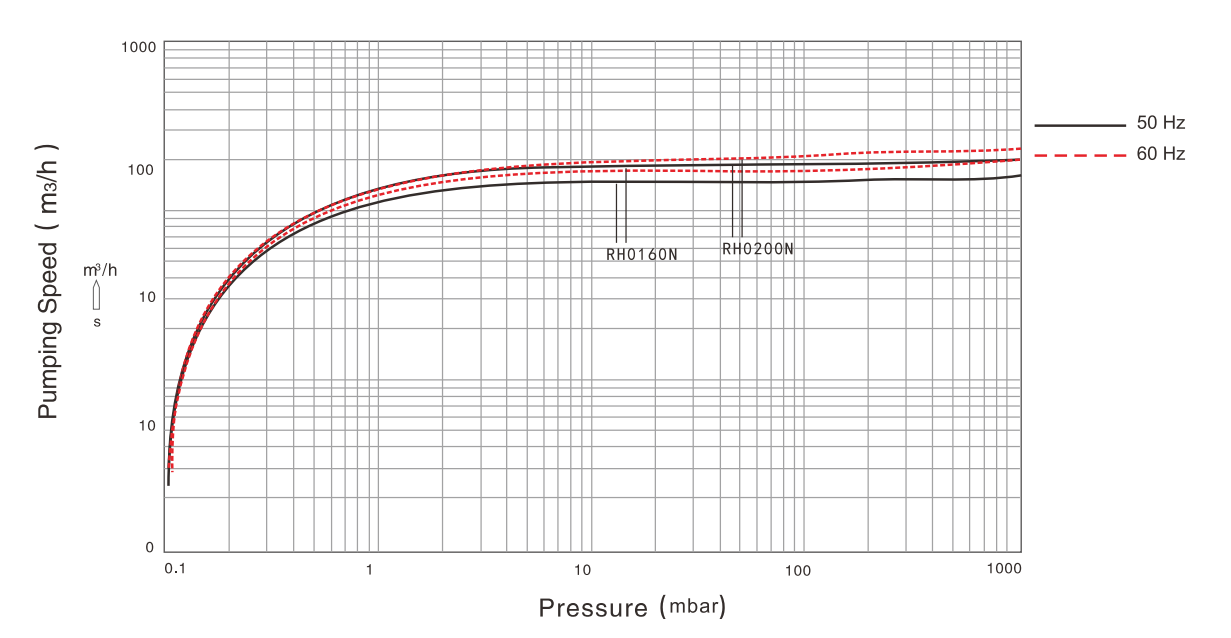

    Performance curve:
