HP-550H Oil-free piston vacuum pump

Introduction:
Motor Power: ≤320 W

Pumping speed : ≤4.1 m³/h

Ultimate pressure: -98 Kpa

GET A QUOTE

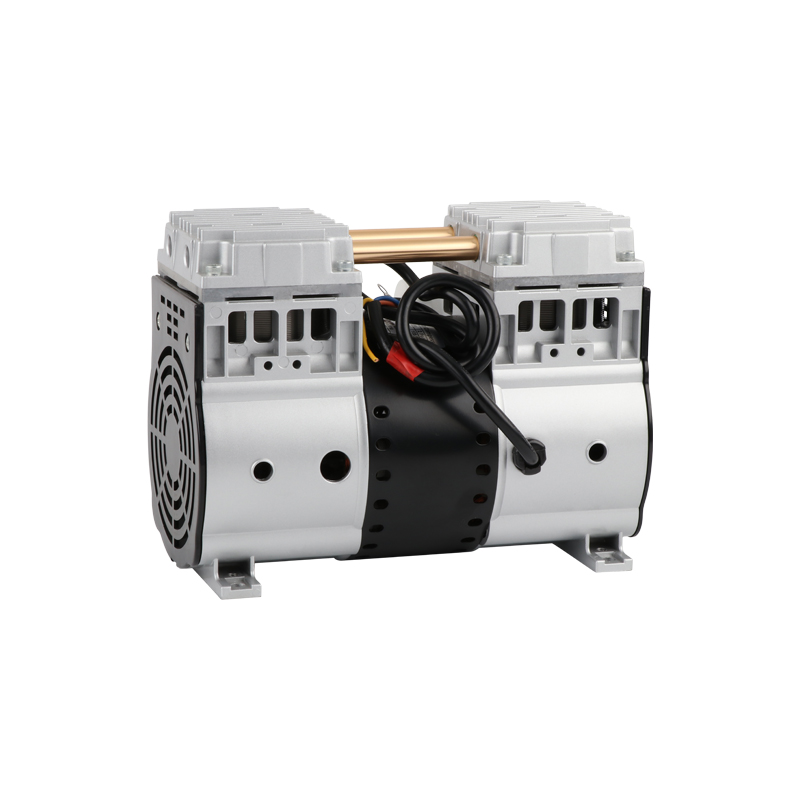

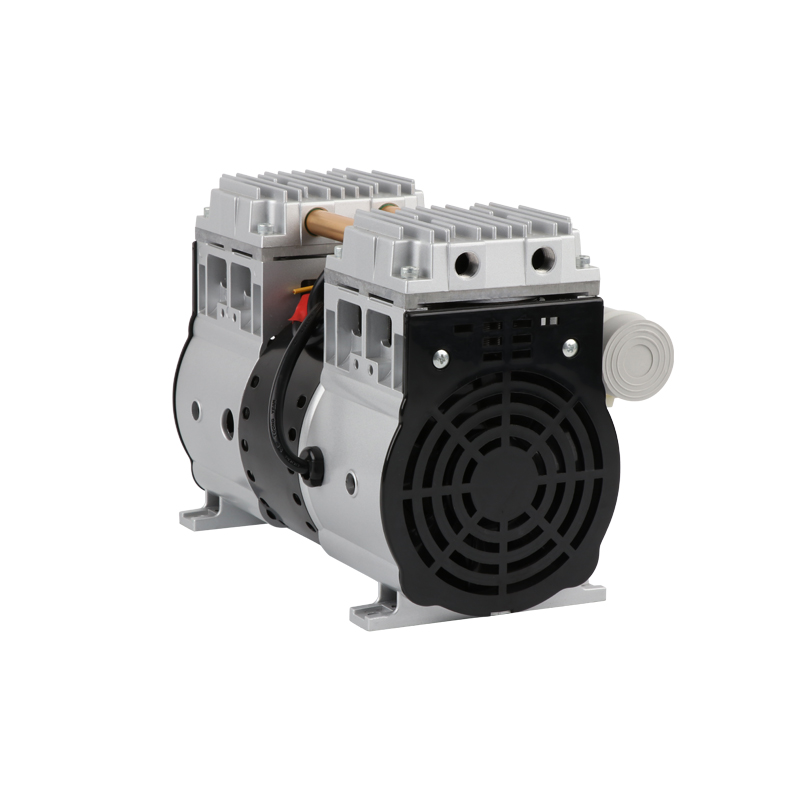

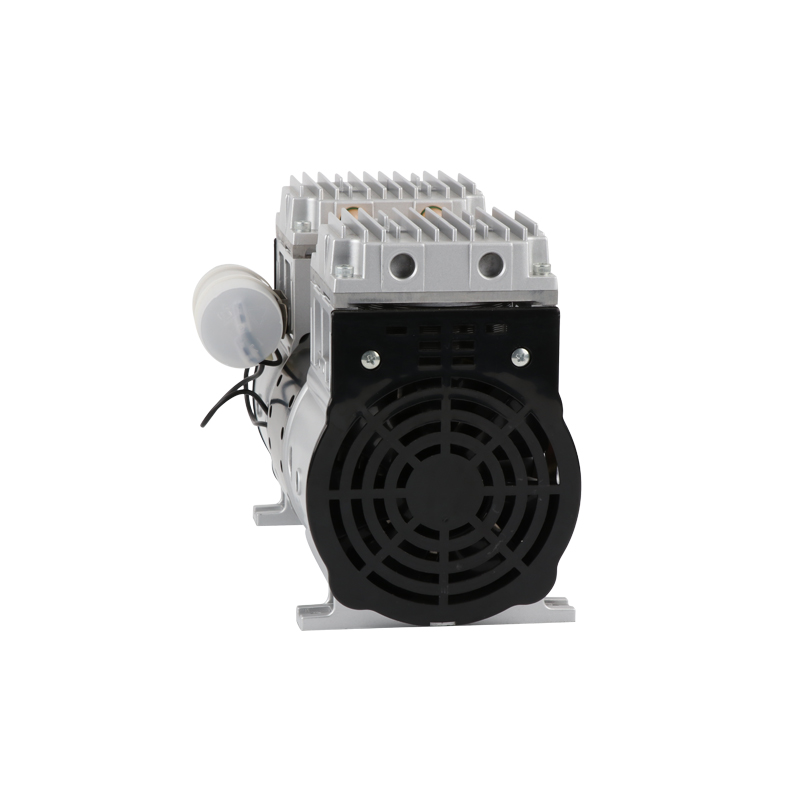

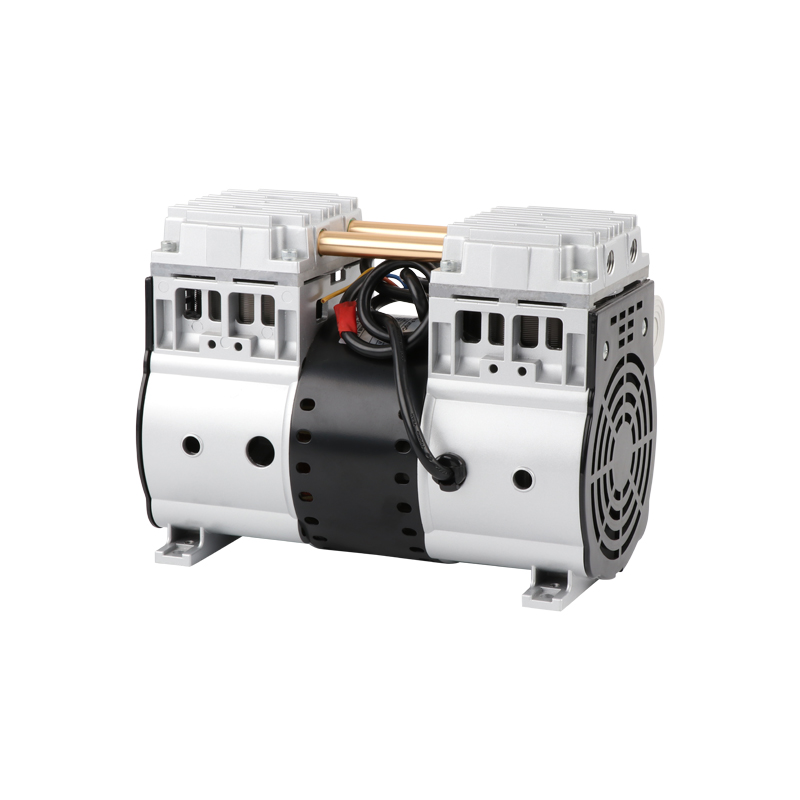

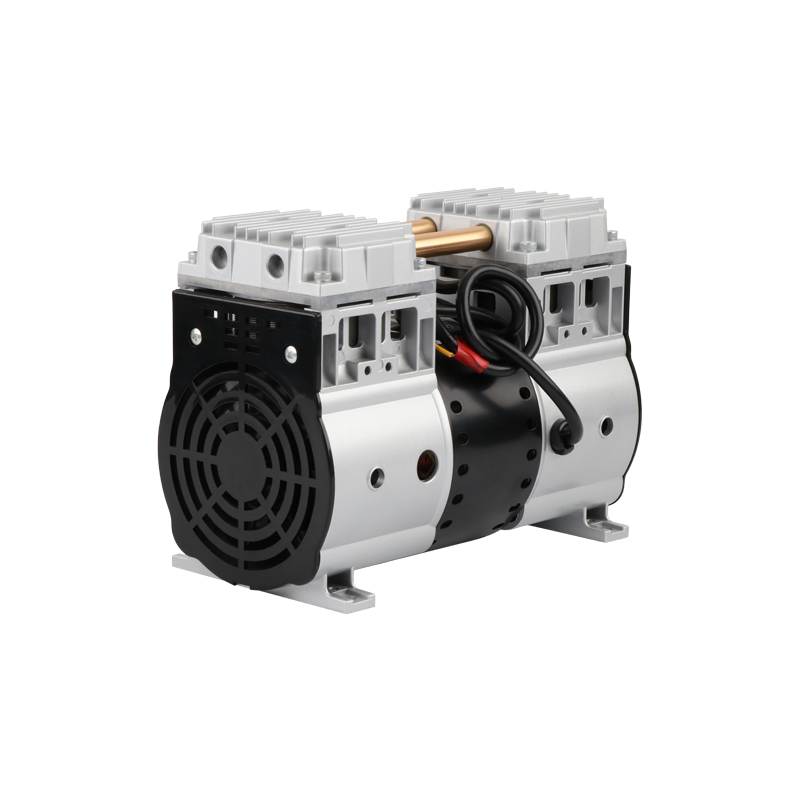

HP-550H Oil-free piston vacuum pump

Product Description










Technical Data

Technical data Unit HP-550H
Rated voltage/frequency V/HZ 220v/50HZ/8uF
Input Power W ≤320
Rated airflow m3/h ≤4.1
Max Vacuum Kpa -98
Sound dB(A) ≤56
Ambient temperature 5-40
Insulaion Class " B
Cold Insulation Resistance ≥100
Breakdown Strength min 1500V/50HZ(1min)
Thermal Protection Automatic Reset 130±5℃
Weight Kg 6.0
Installatong dimension mm L147*W83
Overall dimensionn mm L237*W97*H162
Restart Pressure Kpa 0
Inlet/Outlei Size mm 1/4-18FNPT

Characteristic

Dimensions

Factory

As a recognized and wellknown manufacturer of vacuum pumps, Hokaido Vacuum Technology(Int'l) Group has been leading the development of vacuum technology for the industrial applications since the year of establishment. With the continuously developing and daily internationalizing, Hokaido has built 3 highly modernized manufacturing centers with first-class processing equipments installed throughout china, which are Dongguan Yazreid M&E Technology Co Ltd, Haokede Vacuum Technology(Shanghai) Co Ltd, Hokaido Vacuum Technology(Shandong) Co Ltd.
