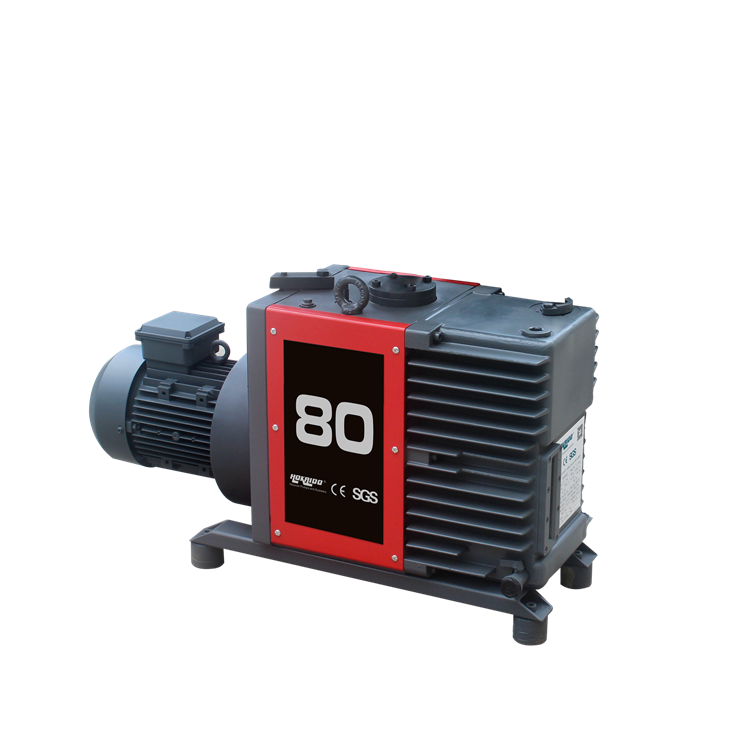

2RH080C Double-stage Rotary Vane Vacuum Pump
Technique data:
| Technical data | Frequency | 2RH080C |
|---|---|---|
| Pumping Speed | 50Hz | 80m3/h |
| 60Hz | 96m3/h | |
| Ultimate Pressure w/o gas ballet | mbar | 7.0x10-4 |
| Ultimate total Pressure w/o gas ballet | mbar | 5.0x10-3 |
| Ultimate Pressure w/gas ballet | mbar | 1.0x10-2 |
| Water VaporΔP | mbar | 20 |
| Inlet/Outlet Flange | " | KF40 |
| Voltage | 50Hz | 220-240/380-415v |
| 60Hz | 220-280/380-440v | |
| Nominal motor rating | Kw | 3.7 |
| Current | 50Hz | 1.75/1.15A |
| 60Hz | 2.1/1.38A | |
| Motor speed | 50Hz | 1400/1410 |
| 60Hz | 1680/1710 | |
| Noise | dB(A) | 70 |
| Oil (min/max) | L | 4.0/6.3 |
| Weight(w/o oil) | Kg | 105 |

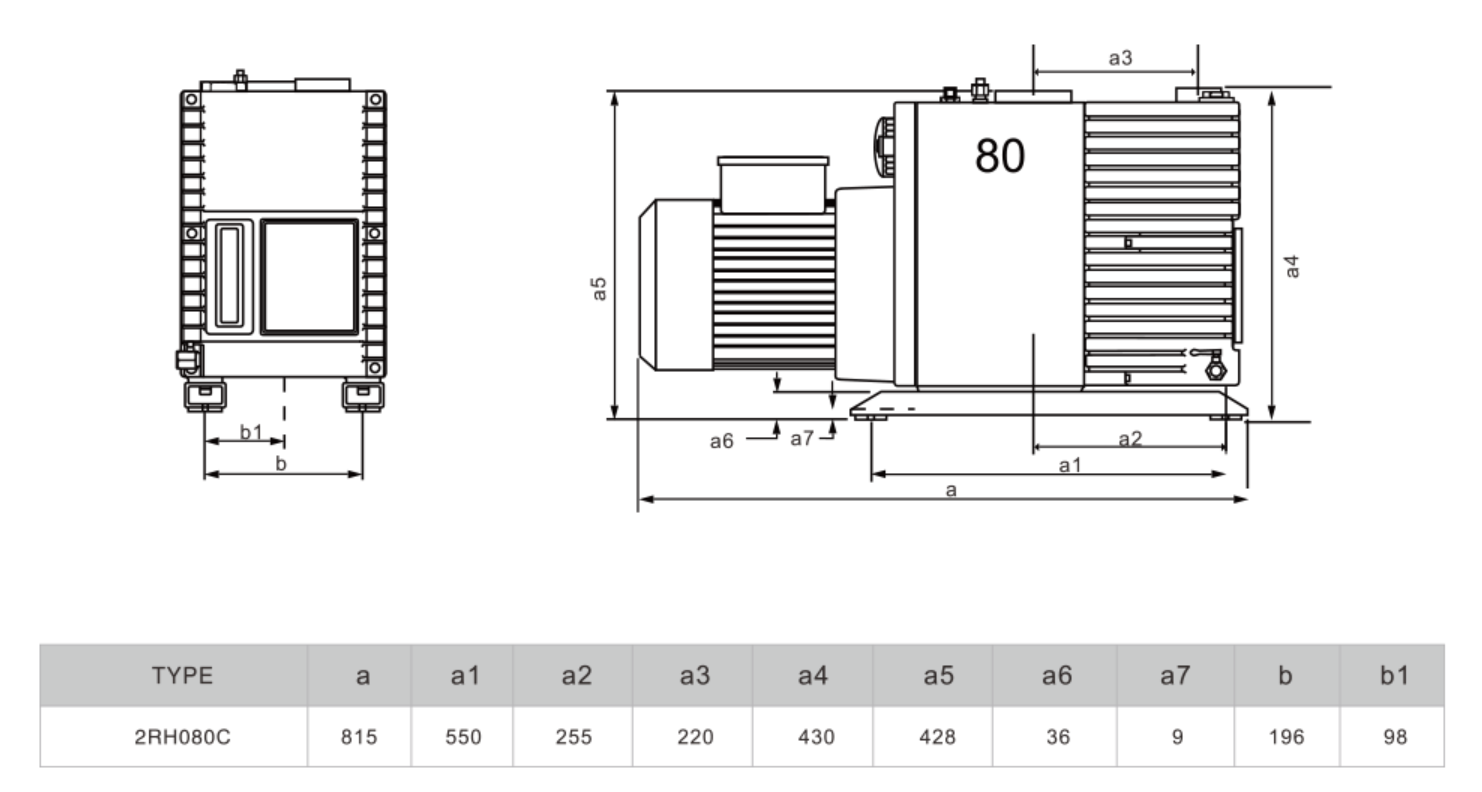

Dimension drawing:

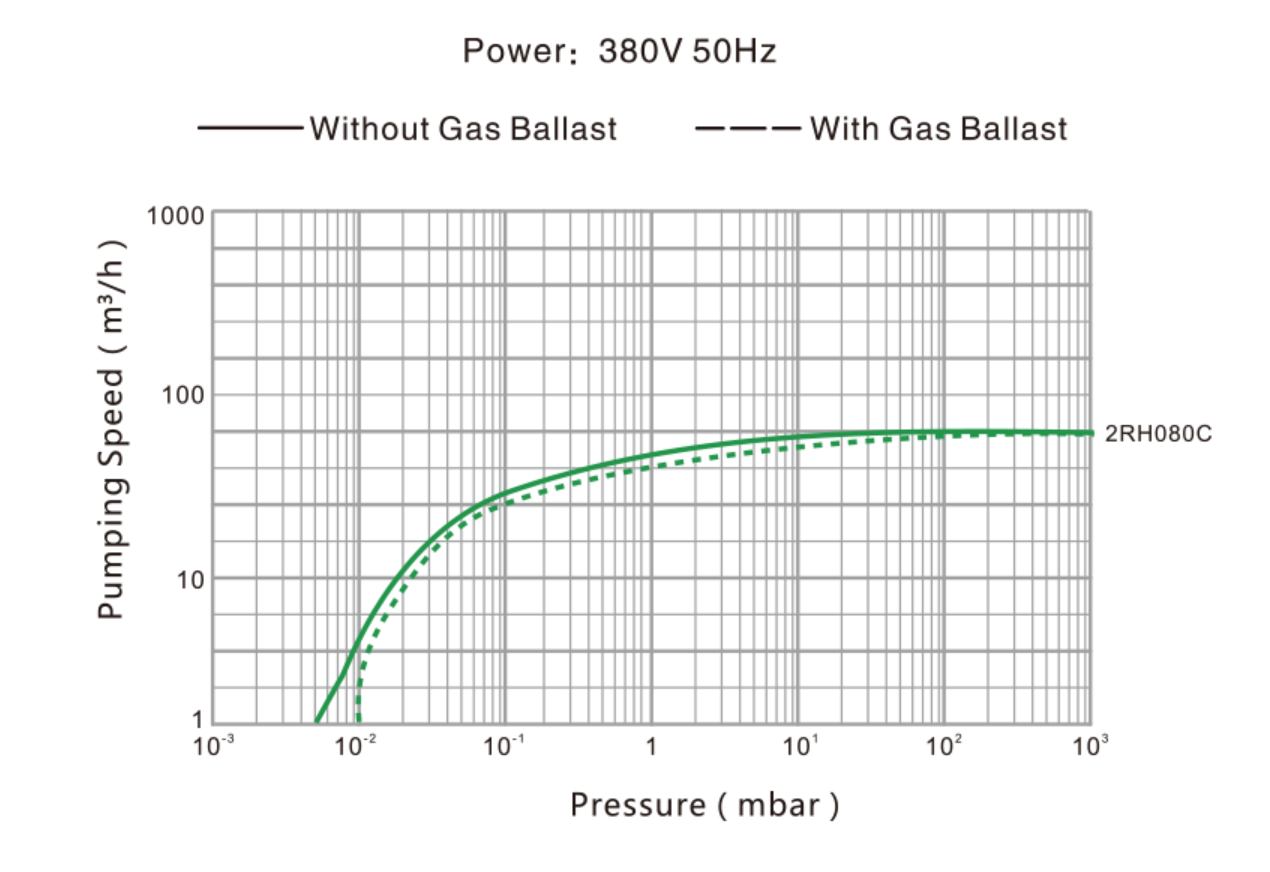

Performance curve:
