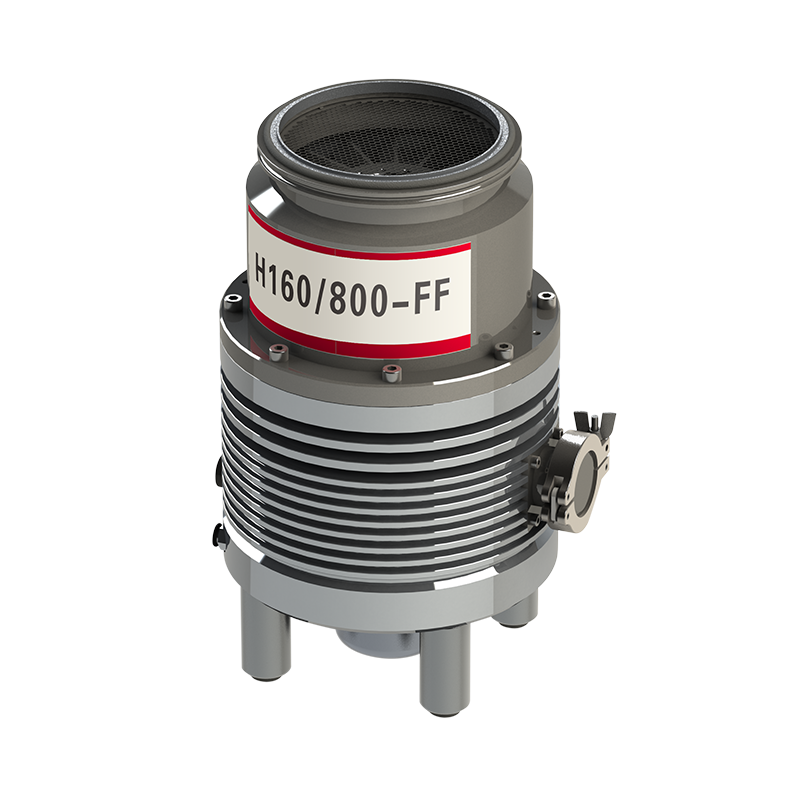

    Turbo-H160/800-FF Turbo molecular vacuum pump,turbo pump commercial

    Introduction:
    Pumping speed: 800 L/s

    Ultimate pressure: 5×10-7 Pa

    Max pre-pressure: 100Pa

    Motor speed: 24000r/min

    GET A QUOTE


    Turbo-H160/800-FF Turbo molecular pump

    Product Description





    Technical Data

    Technique data Unit Turbo-H160/800-FF
    Pumping speed L/s 800
    Ultimate pressure Pa 5×10-7
    Max pre-pressure Pa 100
    For N₂ " 108
    For H₂ " 1×104
    Motor speed r/min 24000
    Start time min <10
    Volume of lubricant oil ml 260
    Installation ways " vertical
    Cooling ways " Water cooling
    Cooling water consumption L/h 90
    Cooling water temperature <24
    Baking temperature 100±10
    Air inlet diameter mm DN160
    Air outlet diameter mm KF40

    Characteristic

    Dimensions

    Factory

    As a recognized and wellknown manufacturer of vacuum pumps, Hokaido Vacuum Technology(Int'l) Group has been leading the development of vacuum technology for the industrial applications since the year of establishment. With the continuously developing and daily internationalizing, Hokaido has built 3 highly modernized manufacturing centers with first-class processing equipments installed throughout china, which are Dongguan Yazreid M&E Technology Co Ltd, Haokede Vacuum Technology(Shanghai) Co Ltd, Hokaido Vacuum Technology(Shandong) Co Ltd.
