  • RH0300 Single-stage Oil-lubricated rotary vane vacuum pump,Rotary piston pump,Rotary vane blower
  • RH0300 Single-stage Oil-lubricated rotary vane vacuum pump,Rotary piston pump,Rotary vane blower

    Introduction:
    Motor Power: 7.5 Kw

    Pumping speed (50 Hz): 300 m³/h

    Pumping speed (60 Hz): 360m³/h

    Ultimate pressure: 0.1 mbar

    GET A QUOTE

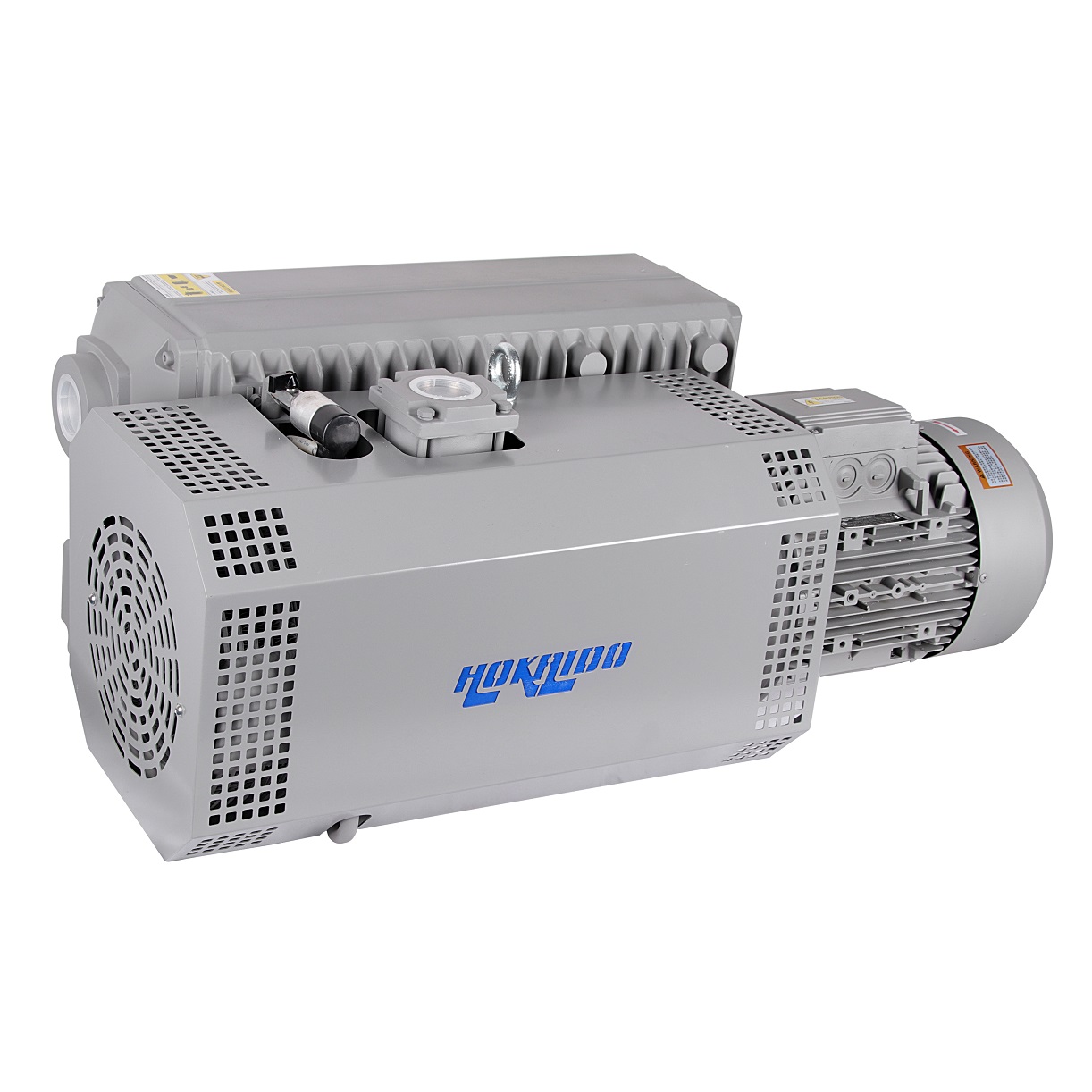

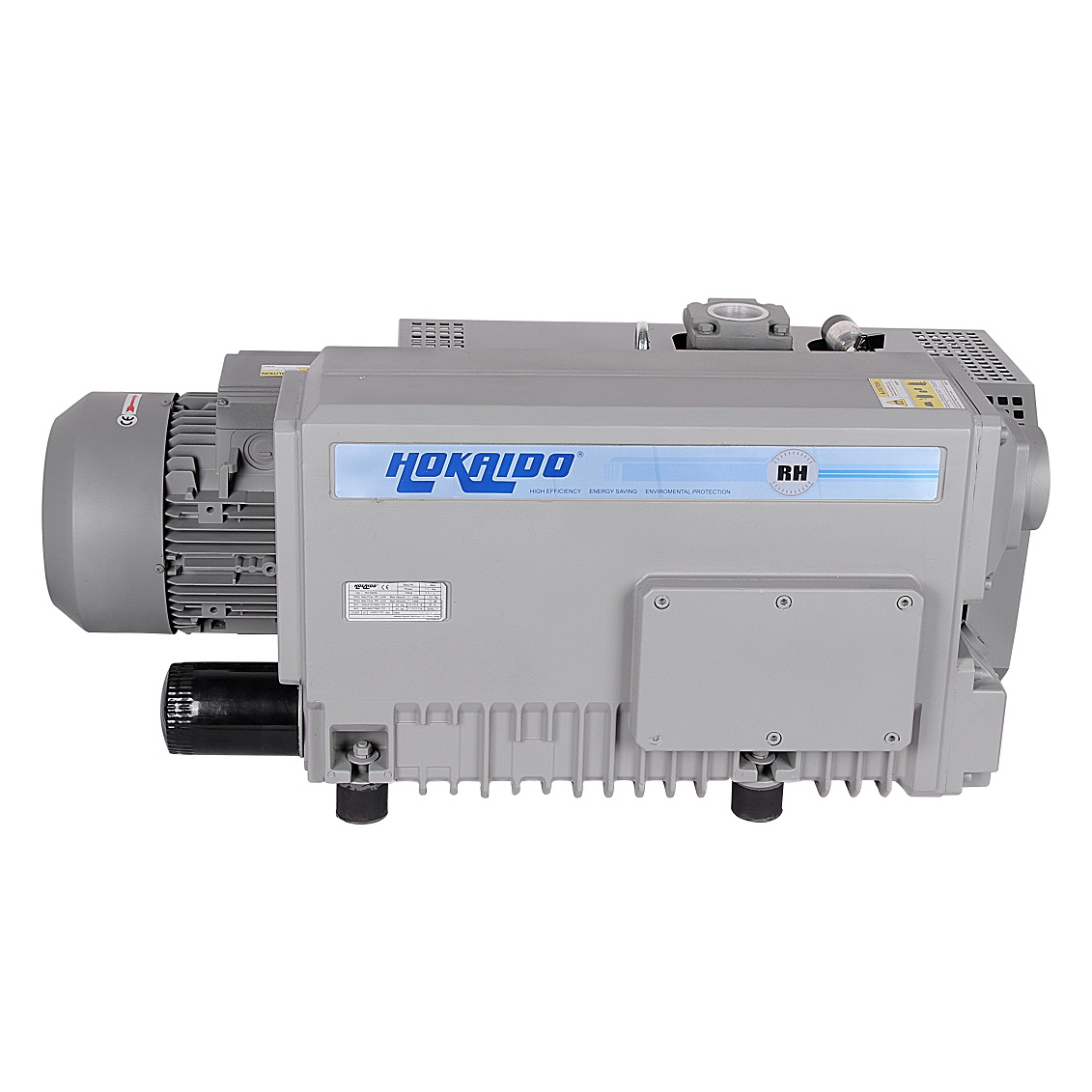

    RH0300 Single-stage Rotary Vane Vacuum Pump


    Technical data Frequency RH0250
    Pumping Speed 50Hz 250m3/h
    60Hz 300m3/h
    Ultimate pressure mbar 0.1
    Diameter " G2"/G2"
    Voltage 50Hz 345-415/600-720v
    60Hz 380-480/660-720v
    Nominal motor rating Kw 7.5
    Current 50Hz 16.7/7.6A
    60Hz 17.3/11.0A
    Nominal speed rpm 1455/1720
    Sound dB(A) 72
    Oil (max) L 8
    Weight(w/o oil) Kg 193

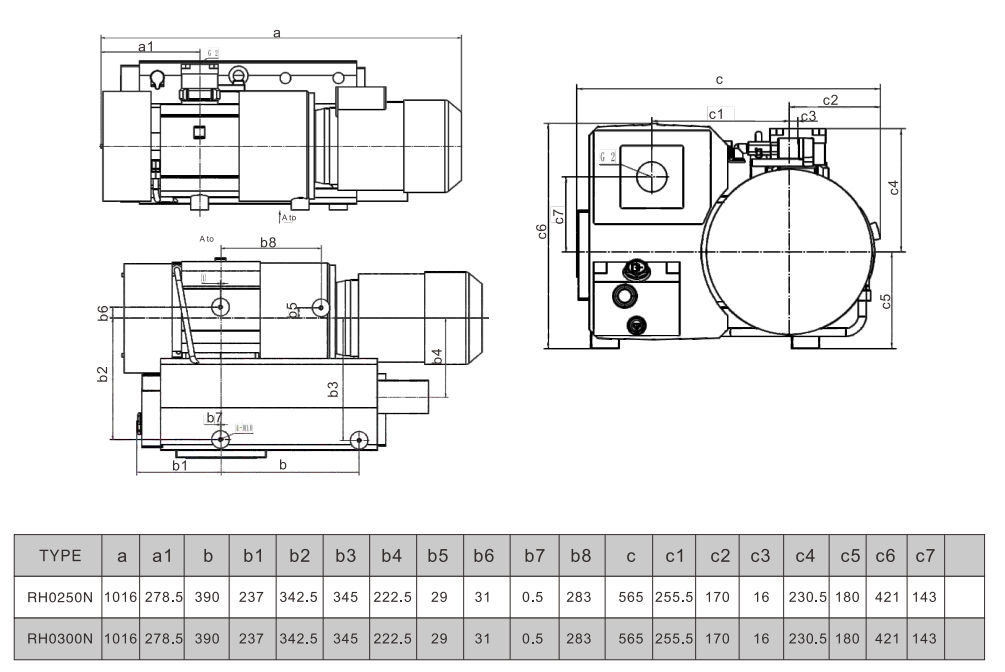

    Dimension drawing:

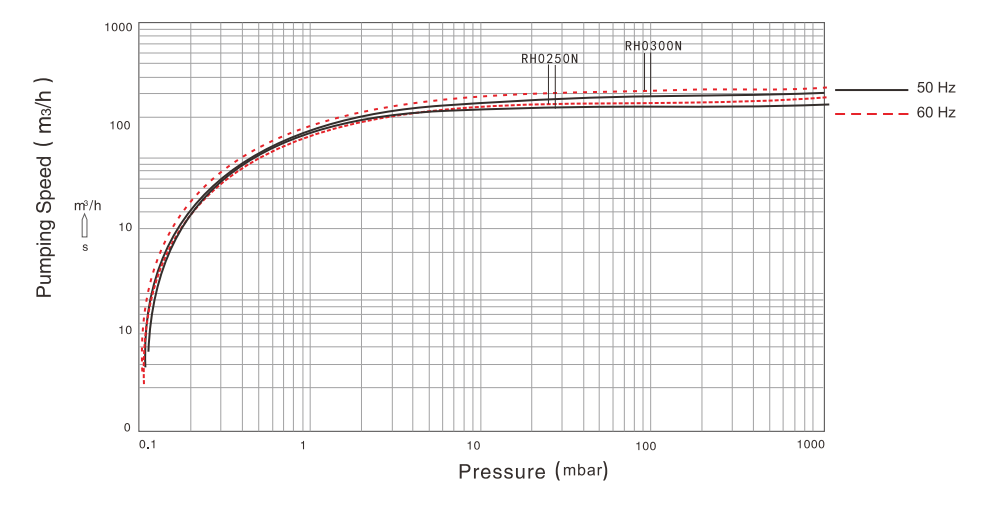

    Performance curve:



    Factory

    As a recognized and wellknown manufacturer of vacuum pumps, Hokaido Vacuum Technology(Int'l) Group has been leading the development of vacuum technology for the industrial applications since the year of establishment. With the continuously developing and daily internationalizing, Hokaido has built 3 highly modernized manufacturing centers with first-class processing equipments installed throughout china, which are Dongguan Yazreid M&E Technology Co Ltd, Haokede Vacuum Technology(Shanghai) Co Ltd, Hokaido Vacuum Technology(Shandong) Co Ltd.
