    Introduction：
    Motor power: 55KW

    Pumping speed(50Hz): 36000m3/h

    Ultimate pressure: 0.05Pa

    GET A QUOTE

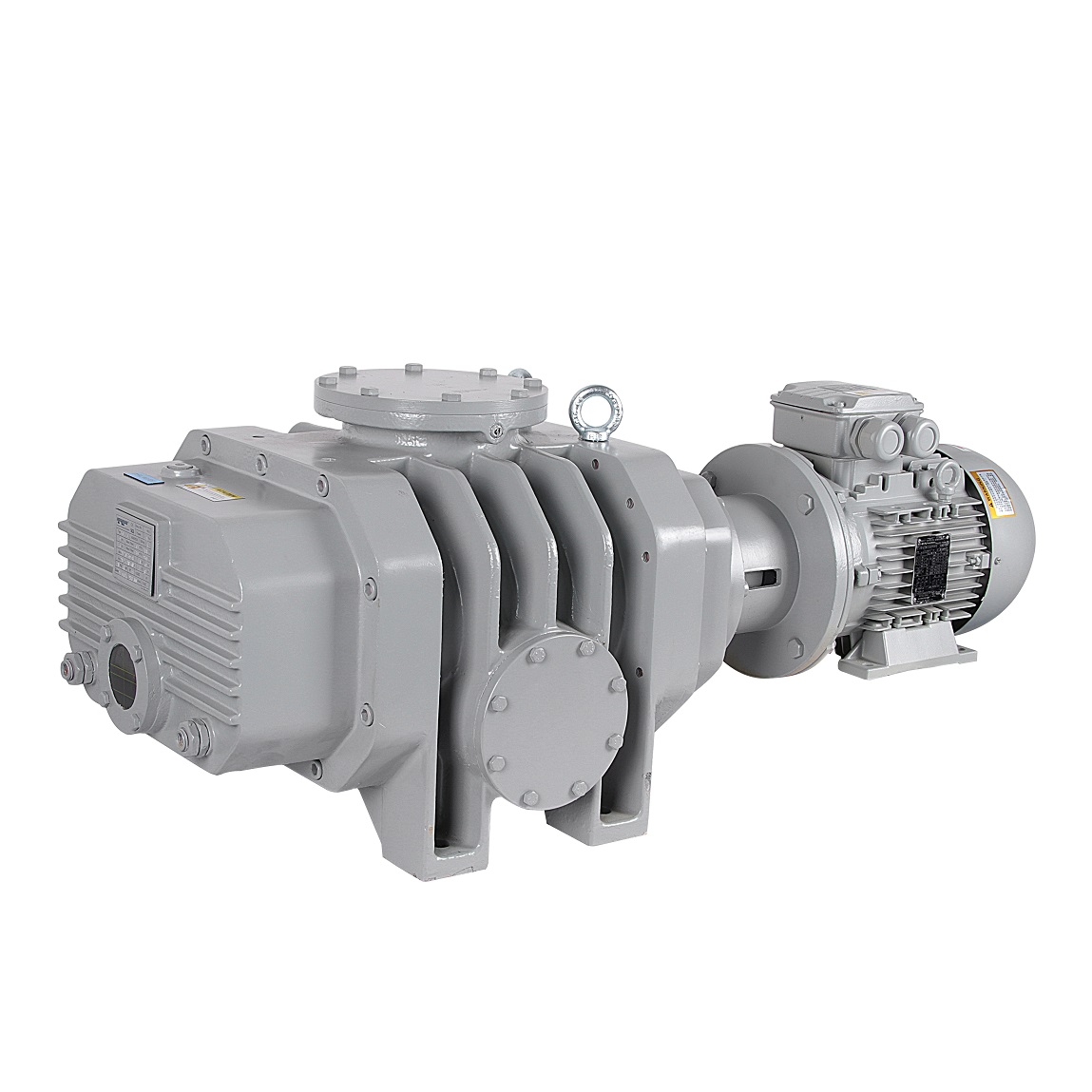

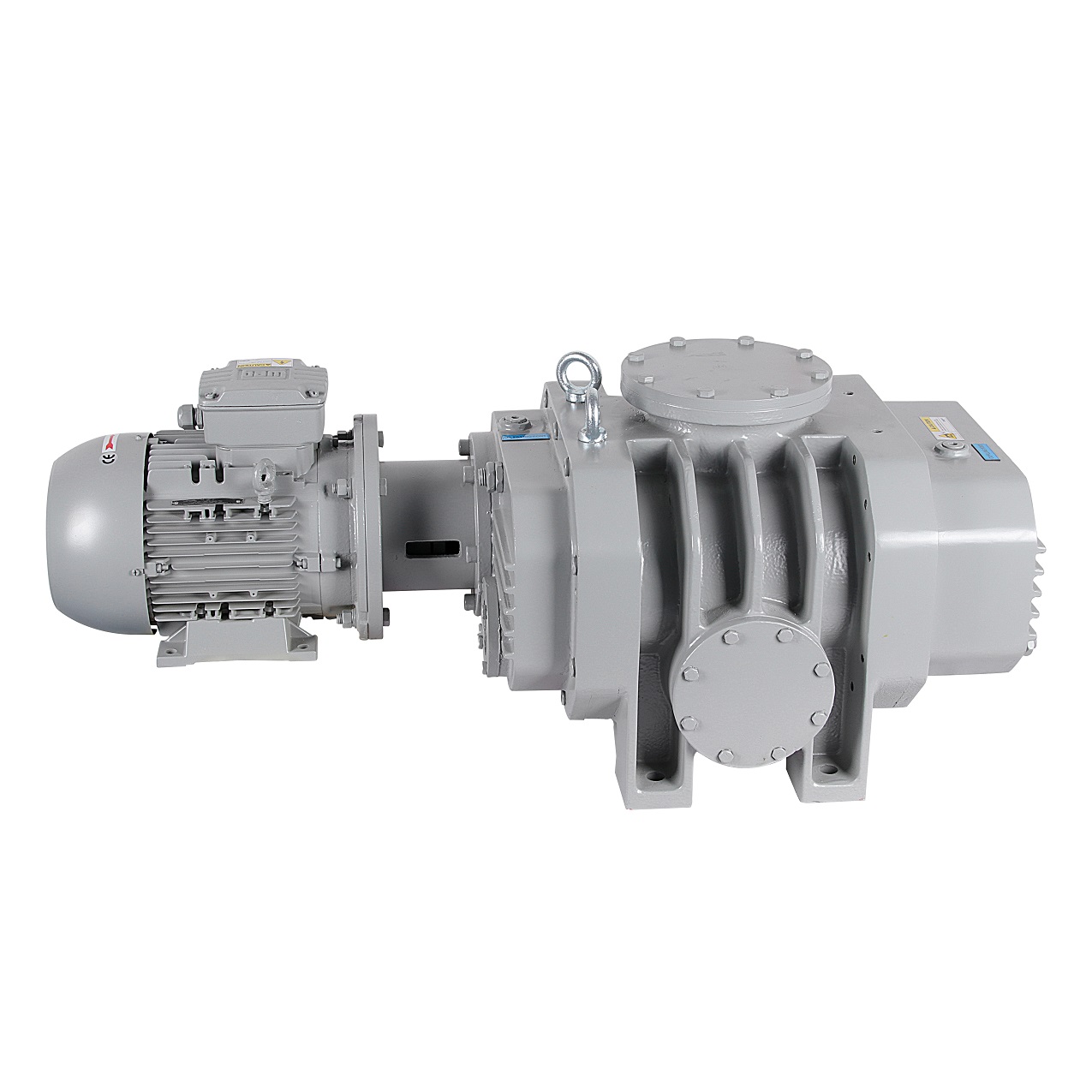

    RVT36000 Roots vacuum pump

    Technique data sheet:
    Technical data 50HZ RVT36000
    Pumping Speed m3/h 36000
    Ultimate pressure Pa ≤0.05
    Extreme full pressure Pa 0.5
    Max.Differential pressure Pa ≥3x10-3
    In and out of caliber mm 500/400
    Nominal motor rating Kw 500
    Motor synchronous speed r/min 1450
    Weight Kg 5000
    Remmend backing pump models " RH0063N

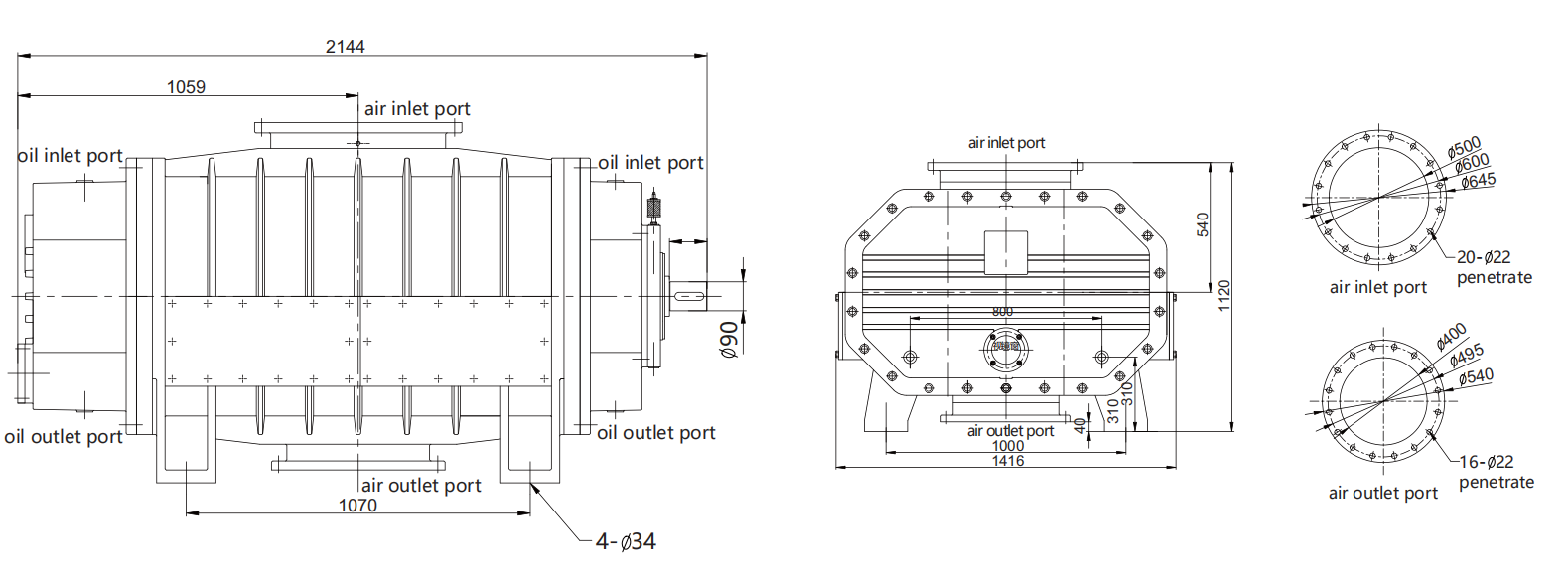

    Dimension drawing:
