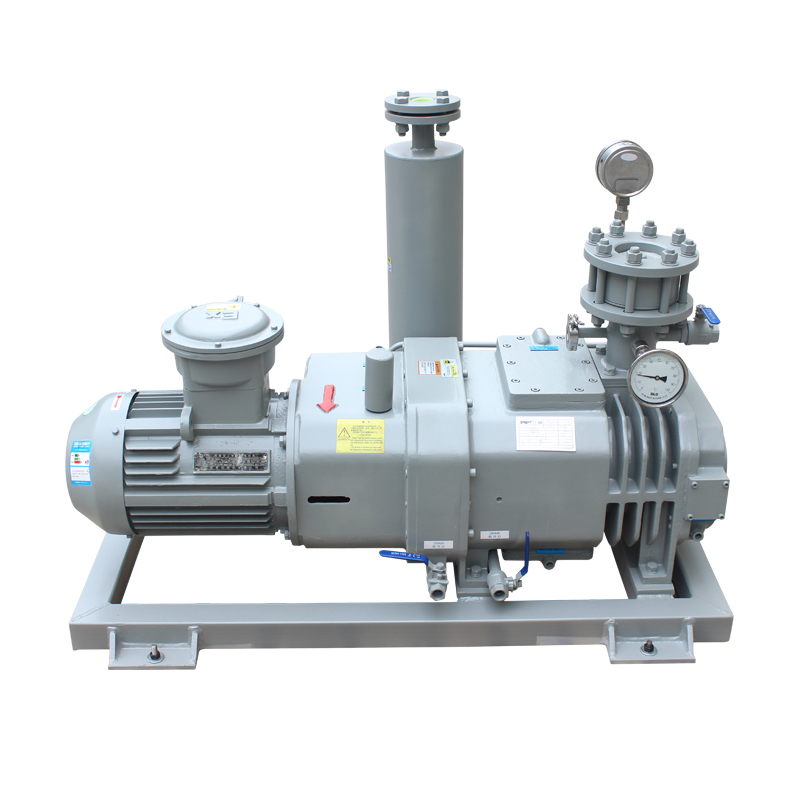

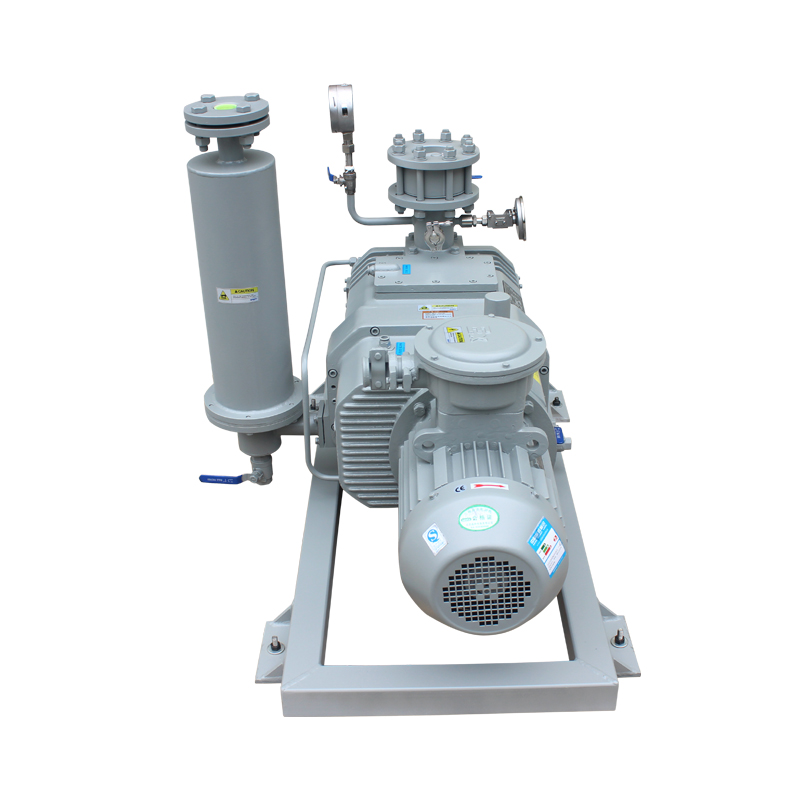

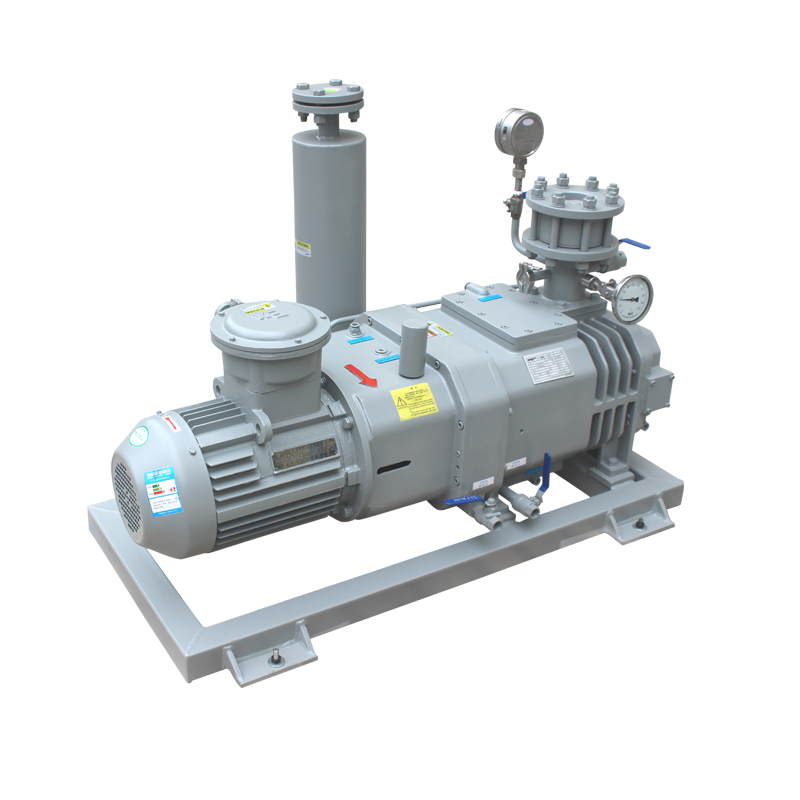

    RSP70 Dry screw vacuum pump

    Introduction:
    Motor Power: 4 Kw

    Pumping speed: 70 m³/h

    Ultimate pressure: 4 Pa

    GET A QUOTE


    RSP70 Dry screw vacuum pump

    Product Description






    Technical Data

    Technical data Unit RSP70
    Pumping Speed m3/h 70
    L/S 19
    Ultimate Vacuum Torr 0.03
    Pa 4
    Motor Power Kw 4
    Motor speed rpm 2900
    Inlet Flange mm DN40
    Outlet Flange mm DN30
    Cooling Water Pressure barg 2-4
    Cooling Water Flow L/min 4
    Cooling Water Temp 5-35
    Noise dB(A) ≤70
    Weight Kg 195

    Characteristic

    Dimensions

    Factory

    As a recognized and wellknown manufacturer of vacuum pumps, Hokaido Vacuum Technology(Int'l) Group has been leading the development of vacuum technology for the industrial applications since the year of establishment. With the continuously developing and daily internationalizing, Hokaido has built 3 highly modernized manufacturing centers with first-class processing equipments installed throughout china, which are Dongguan Yazreid M&E Technology Co Ltd, Haokede Vacuum Technology(Shanghai) Co Ltd, Hokaido Vacuum Technology(Shandong) Co Ltd.
