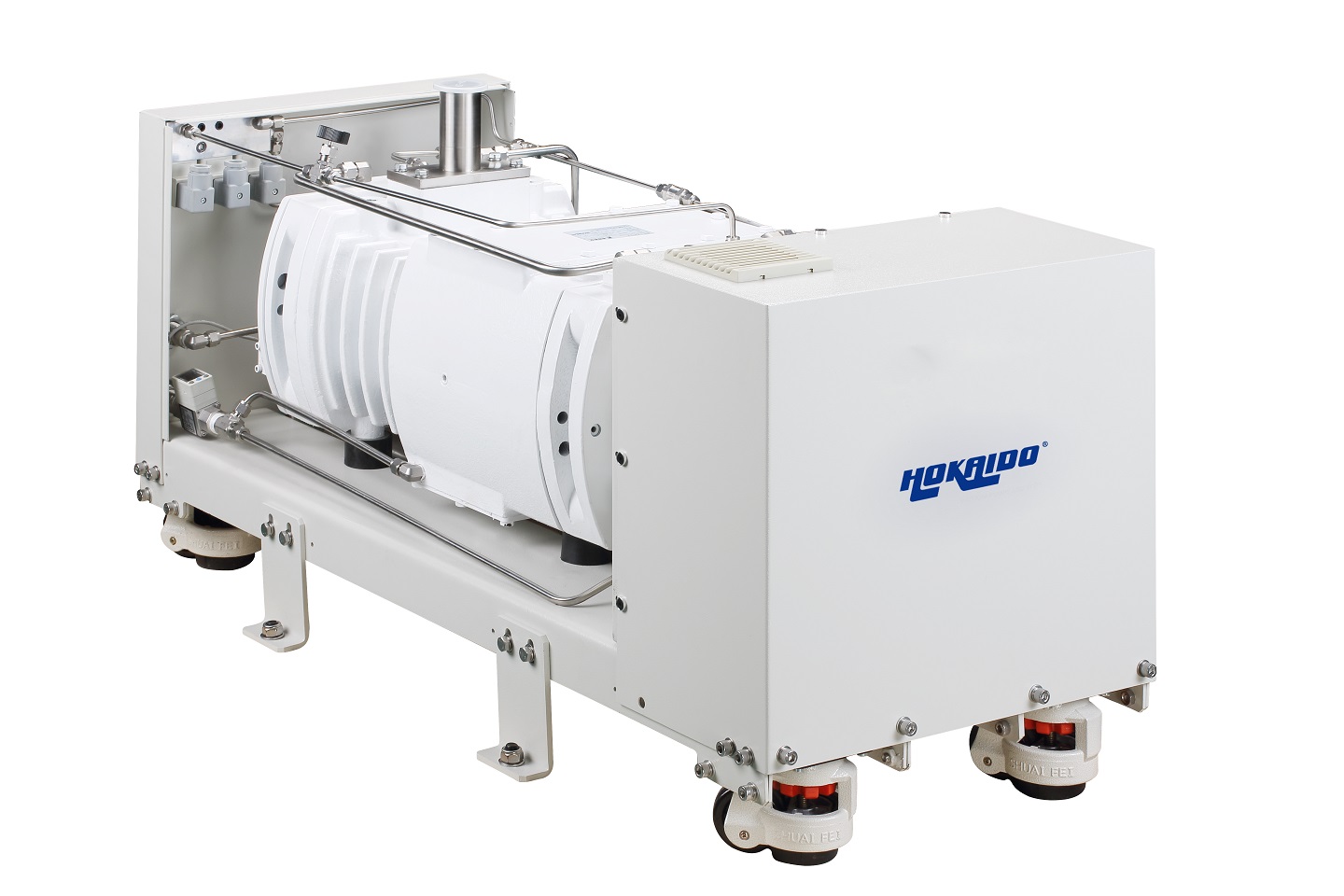

RSD450 Dry screw vacuum pump
| Technique data | Unit | RSD450 | |
|---|---|---|---|
| Pumping speed | m3/h | 450 | |
| Ultimate pressure (without purging) | Pa | ≤0.5 | |
| Motor rated power | kw | 11 | |
| Voltage(three-phase) | V | 380/400 | |
| Air inlet connector | ISO100 | ||
| Air outlet connector | KF40 | ||
| Cooling water | Pressure | MPa | 0.2-0.6 |
| Flow rate | L/min | ≥6 | |
| Temperature | ℃ | 5-30 | |
| N2 purging | Pressure | MPa | 0.2-0.6 |
| Flow rate | L/min | 12-50 | |
| Maximum allowable outlet pressure | MPa | 0.14 | |
| Noise (with muffler and check valve) | dB(A) | ≤70 | |
| Ambient temperature | ℃ | 5-40 | |
| Weight | Kg | ~530 | |
