RV250Y Roots vacuum pump
| Technical data | 50HZ | RV250Y |
|---|---|---|
| Pumping Speed | m3/h | 250 |
| Ultimate pressure | Pa | 0.05 |
| Extreme full pressure | Pa | 0.5 |
| Max.Differential pressure | Pa | 8000 |
| In and out of caliber | mm | 65 |
| Max. of zero flow compression rate | max | ≥35 |
| Sound | dB(A) | 63 |
| Nominal motor rating | Kw | 1.1 |
| Motor synchronous speed | r/min | 3000 |
| Cooling model | " | natural air cooling |
| Weight | Kg | 100 |
| Remmend backing pump models | " | RH0100 |

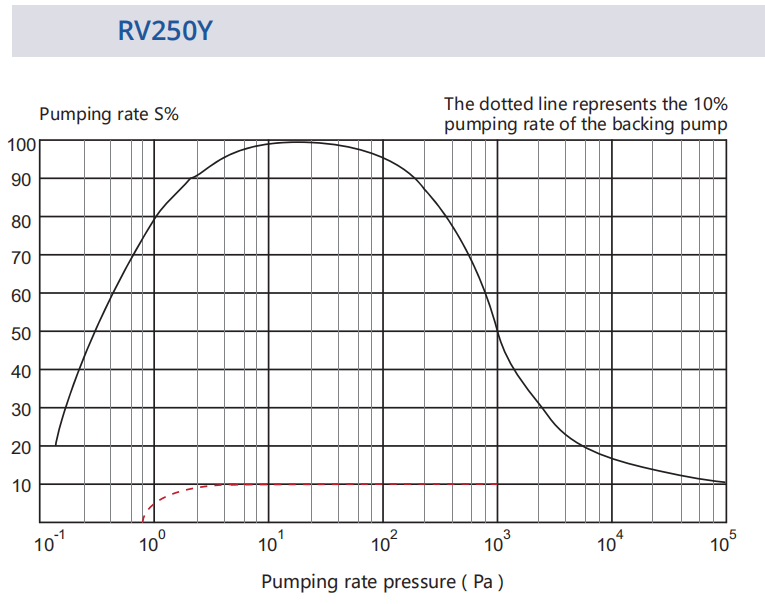

Performance curve:

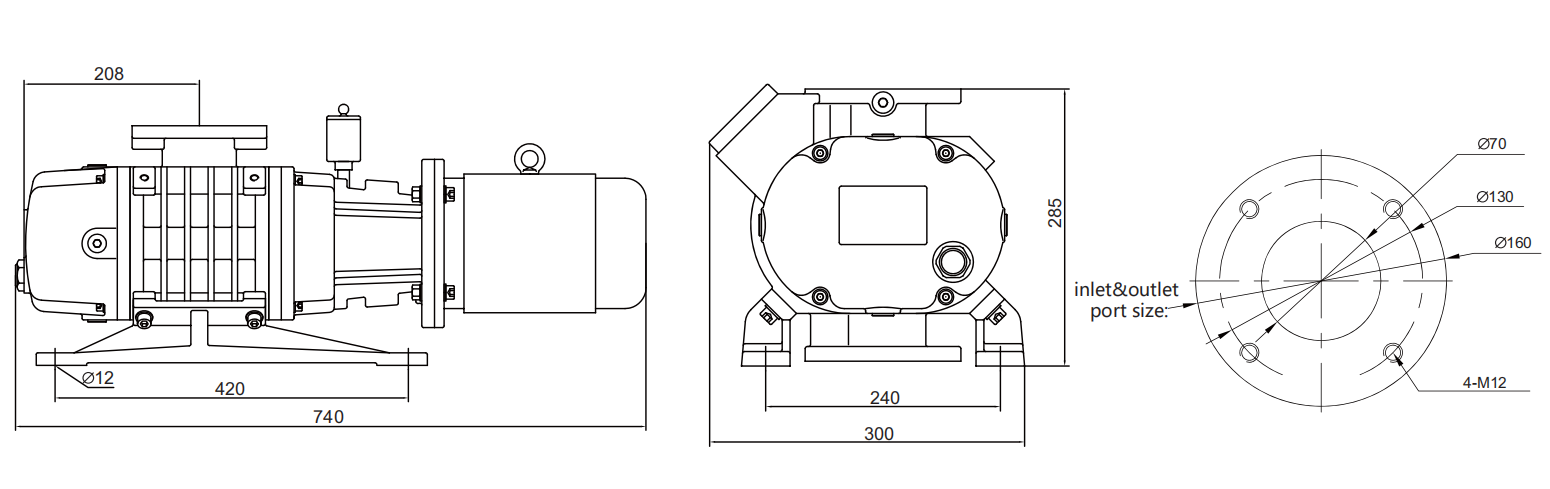

Dimension drawing:
